Generic representation
Available
Package quantity: 5
ISO: TR-DC1304S01020F 7025
Material Id: 5983649
EAN: 25983649
ANSI: TR-DC1304S01020F 7025
Start values (KAPR 96 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.1 mm (0.07 - 0.2)
fn 0.09 mm/r (0.06 - 0.18)
hex 0.06 mm/r (0.04 - 0.12)
vc 170 m/min (175 - 150)

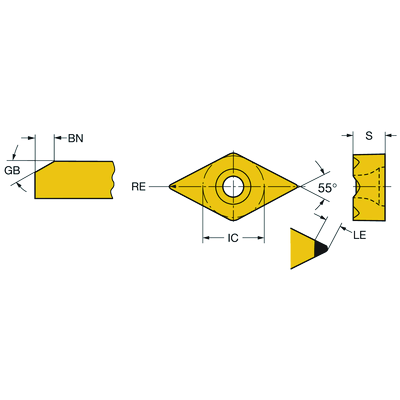

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
H
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
40°-60° countersunk hole, rail bottom
Fixing hole diameter(D1)
3.7 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroTurn TR DC13
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
11 mm
Insert shape code(SC)
D - Rhombic 55° inserts
Cutting edge effective length(LE)
3.1 mm
Corner radius
(RE)
0.3969 mm
Face land width(BN)
0.1 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7025
Substrate(SUBSTRATE)
BL
Insert thickness(S)
5.525 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0083 kg
Insert seat - metric(SSC_M)
13
Insert seat size code imperial view(SSC_N)
13
Release date(ValFrom20)
2/22/11
Release pack id(RELEASEPACK)
11.1
