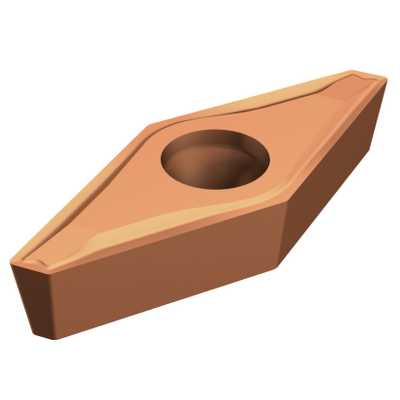

Generic representation
Made-to-order
Package quantity: 10
ISO: VCEX 11 03 00L-F 1125
Material Id: 5755916
EAN: 12343332
ANSI: VCEX 22(00)L-F 1125
Start values (KAPR 93 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 0.039 in (0.001 - 0.157)
fn 0.002 in/r (0 - 0.008)
hex 0.002 in/r (0 - 0.008)
vc 600 sfm (600 - 540)
N1.3.C.AG, Hardness: 90 HB
N
ap 0.039 in (0.001 - 0.157)
fn 0.002 in/r (0 - 0.008)
hex 0.002 in/r (0 - 0.008)
vc 2300 sfm (2850 - 285)
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.039 in (0.001 - 0.118)
fn 0.002 in/r (0 - 0.006)
hex 0.002 in/r (0 - 0.006)
vc 115 sfm (115 - 115)

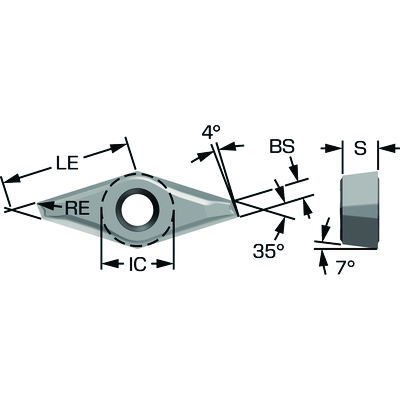

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
Chip breaker(CBMD)
F
Operation type
(CTPT)
finishing
Fixing hole diameter(D1)
0.1102 inch
Insert size and shape
(CUTINT_SIZESHAPE)
VC1103
Cutting edge count(CEDC)
2
Insert shape code(SC)
Rhombic 35
Cutting edge effective length(LE)
0.4359 inch
Corner radius
(RE)
0.0008 inch
Wiper insert(WEP)
Yes
Major cutting edge angle(KRINS)
93 °
Hand
(HAND)
Left
Grade
(GRADE)
1125
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiAlN
Weight of item(WT)
0.0043 lb
Release date(ValFrom20)
9/8/08
Release pack id(RELEASEPACK)
08.2
