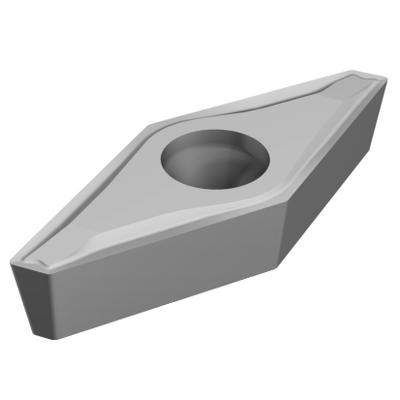

Generic representation
Available
Package quantity: 10
ISO: VCEX 11 03 01L-F 1205
Material Id: 8432368
EAN: 7323227515915
ANSI: VCEX 22(03)L-F 1205
Start values (KAPR 93 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 1 mm (0.05 - 3)
fn 0.07 mm/r (0.01 - 0.21)
hex 0.07 mm/r (0.01 - 0.21)
vc 105 m/min (105 - 45)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
S
Chip breaker(CBMD)
F
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.8 mm
Insert size and shape
(CUTINT_SIZESHAPE)
VC1103
Cutting edge count(CEDC)
2
Inscribed circle diameter(IC)
6.35 mm
Insert shape code(SC)
Rhombic 35
Cutting edge effective length(LE)
10.9709 mm
Corner radius
(RE)
0.1 mm
Wiper insert(WEP)
Yes
Hand
(HAND)
Left
Grade
(GRADE)
1205
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlTiN
Insert thickness(S)
3.175 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.004 kg
Insert seat - metric(SSC_M)
11
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
2/26/24
Release pack id(RELEASEPACK)
24.1
