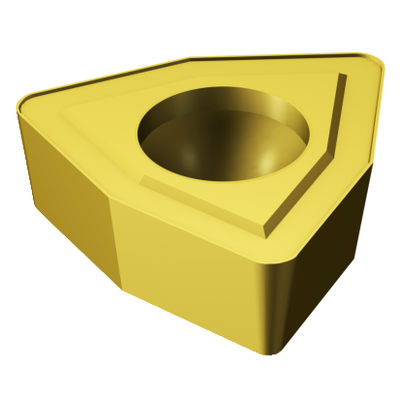

Generic representation
Available within a week
Package quantity: 10
ISO: WCMX 06 T3 04R-WM 1020
Material Id: 5756181
EAN: 11311506
ANSI: WCMX 06 T3 04R-WM 1020
Start values (LxD 1 )
P2.1.Z.AN, Hardness: 175 HB
P
fn 0.22 mm/r (0.15 - 0.26)
vc 160 m/min (195 - 105)
M1.0.Z.AQ, Hardness: 200 HB
M
fn 0.11 mm/r (0.06 - 0.14)
vc 160 m/min (180 - 125)
K2.2.C.UT, Hardness: 245 HB
K
fn 0.25 mm/r (0.2 - 0.28)
vc 105 m/min (125 - 75)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
Insert usage code(INSUC)
P
Chip breaker(CBMD)
WM
Operation type
(CTPT)
medium feed
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
3.7 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill U WC06T3xx
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Trigon 80
Corner radius
(RE)
0.4 mm
Wiper insert(WEP)
Yes
Insert rake angle(GAN)
15 °
Grade
(GRADE)
1020
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiN
Insert thickness(S)
3.9688 mm
Weight of item(WT)
0.0037 kg
Insert seat - metric(SSC_M)
06
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
12/3/01
Release pack id(RELEASEPACK)
02.1
