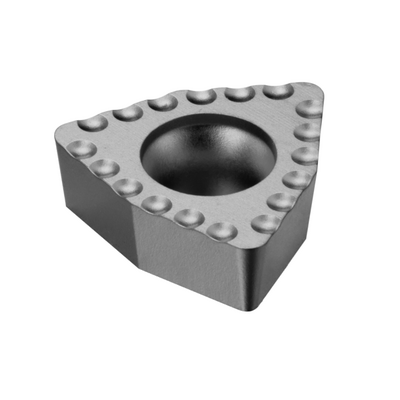

Generic representation
Available within a week
Package quantity: 10
ISO: WCMX 08 04 12 R-51 H13A
Material Id: 5756271
EAN: 10415296
ANSI: WCMX 08 04 12 R-51 H13A
Start values (LxD 1 )
N1.3.C.AG, Hardness: 90 HB
N
fn 0.21 mm/r (0.14 - 0.26)
vc 310 m/min (350 - 250)
S2.0.Z.AG, Hardness: 350 HB
S
fn 0.12 mm/r (0.09 - 0.14)
vc 38 m/min (50 - 20)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
N
S
Insert usage code(INSUC)
P
Chip breaker(CBMD)
51
Operation type
(CTPT)
medium feed
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.3 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroDrill U WC0804xxP
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Trigon 80
Corner radius
(RE)
1.2 mm
Insert rake angle(GAN)
12 °
Grade
(GRADE)
H13A
Substrate(SUBSTRATE)
HW
Insert thickness(S)
4.7625 mm
Weight of item(WT)
0.0077 kg
Insert seat - metric(SSC_M)
08
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
1/2/89
Release pack id(RELEASEPACK)
89.1
