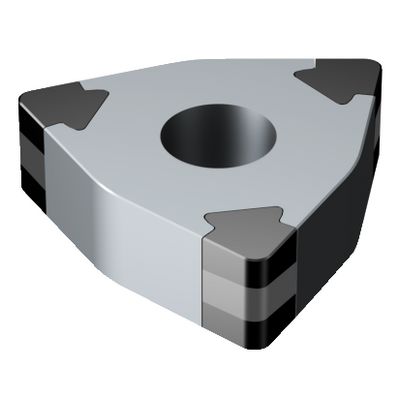

Generic representation
Available
Package quantity: 5
ISO: WNGA060408S01030A 7025
Material Id: 5756217
EAN: 12194873
ANSI: WNGA332S0330A 7025
Start values (KAPR 95 deg )
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.15 mm (0.07 - 0.4)
fn 0.14 mm/r (0.07 - 0.27)
hex 0.08 mm/r (0.04 - 0.16)
vc 160 m/min (175 - 145)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
H
Operation type
(CTPT)
finishing
Fixing hole diameter(D1)
3.81 mm
Insert size and shape
(CUTINT_SIZESHAPE)
WN0604
Cutting edge count(CEDC)
6
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
2.4 mm
Corner radius
(RE)
0.7938 mm
Face land width(BN)
0.1 mm
Face land angle(GB)
30 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7025
Substrate(SUBSTRATE)
BL
Weight of item(WT)
0.0038 kg
Release date(ValFrom20)
1/29/07
Release pack id(RELEASEPACK)
07.1
