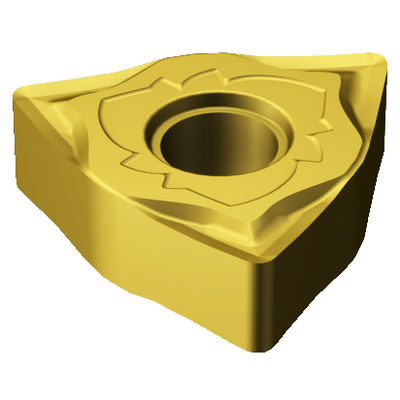

Generic representation
Available
Package quantity: 10
ISO: WNGG 08 04 04-SGF S05F
Material Id: 5909099
EAN: 25909099
ANSI: WNGG 431-SGF S05F
Start values (KAPR 95 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.3 mm (0.1 - 3)
fn 0.12 mm/r (0.05 - 0.26)
hex 0.12 mm/r (0.05 - 0.25)
vc 85 m/min (85 - 70)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
S
Chip breaker(CBMD)
SGF
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
WN0804
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
3.2 mm
Corner radius
(RE)
0.3969 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
S05F
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0098 kg
Insert seat - metric(SSC_M)
08
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
9/18/10
Release pack id(RELEASEPACK)
10.2
