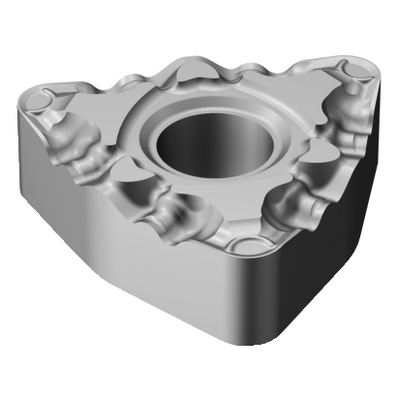

Generic representation
List price: 12.25 EUR
Available
Package quantity: 10
ISO: WNMG 06 04 04-PF 5015
Material Id: 5756305
EAN: 10857162
ANSI: WNMG 331-PF 5015
Start values (KAPR 95 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 0.016 in (0.01 - 0.059)
fn 0.006 in/r (0.003 - 0.01)
hex 0.006 in/r (0.003 - 0.01)
vc 1200 sfm (1500 - 1000)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
K
Chip breaker(CBMD)
PF
Operation type
(CTPT)
finishing
Fixing hole diameter(D1)
0.15 inch
Insert size and shape
(CUTINT_SIZESHAPE)
WN0604
Cutting edge count(CEDC)
6
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
0.2408 inch
Corner radius
(RE)
0.0156 inch
Hand
(HAND)
Neutral
Grade
(GRADE)
5015
Substrate(SUBSTRATE)
HT
Weight of item(WT)
0.0042 lb
Release date(ValFrom20)
4/24/95
Release pack id(RELEASEPACK)
02.2
