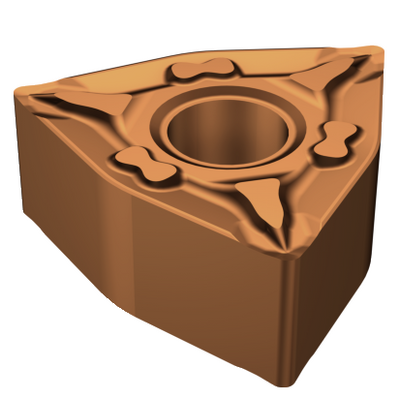

Generic representation
List price: 16.70 EUR
Available
Package quantity: 10
ISO: WNMG 08 04 08-MF 1115
Material Id: 5756485
EAN: 12387056
ANSI: WNMG 432-MF 1115
Start values (KAPR 95 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 0.4 mm (0.1 - 1.5)
fn 0.23 mm/r (0.12 - 0.46)
hex 0.2 mm/r (0.1 - 0.4)
vc 170 m/min (215 - 120)
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.4 mm (0.1 - 1.5)
fn 0.17 mm/r (0.12 - 0.35)
hex 0.15 mm/r (0.1 - 0.3)
vc 38 m/min (50 - 16)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
S
Chip breaker(CBMD)
MF
Operation type
(CTPT)
finishing
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
WN0804
Cutting edge count(CEDC)
6
Insert shape code(SC)
Trigon 80
Cutting edge effective length(LE)
7.8873 mm
Corner radius
(RE)
0.7938 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1115
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiAlN
Weight of item(WT)
0.009 kg
Release date(ValFrom20)
1/9/09
Release pack id(RELEASEPACK)
09.1
