Specific representation
Available
Package quantity: 1
ISO: A419-051R19-14M
Material Id: 6289908
EAN: 26289908
ANSI: A419-051R19-14M

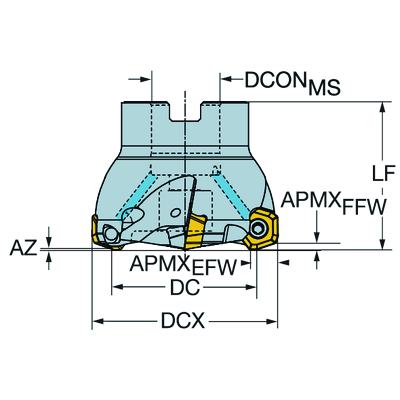

Technical illustrations
Generic representation
Product data
Tool cutting edge angle
(KAPR)
19 °
Cutting diameter
(DC)
36.1 mm
Maximum cutting diameter(DCX)
50.8 mm
Cutting item count(CICT_2)
4
Clamping type code(MTP)
clamp with screw through hole
Part 2 of cutting item interface identifiers(CUTINT_MASTER_2)
CoroMill 419 -size 1405 (419R-1405)
Depth of cut maximum(APMX_EFW)
8 mm
Depth of cut maximum(APMX_FFW)
2 mm
Maximum ramping angle
(RMPX)
8 °
Maximum plunge depth(AZ)
2 mm
Cutting pitch differential(CPDF)
Yes
Peripheral effective cutting edge count(ZEFP)
4
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -A (hexagon socket head cap screw) -inch: 3/4
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
10 bar
Connection diameter machine side(DCONMS)
19.05 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
A
Functional length(LF)
44.45 mm
Radial rake angle(GAMF)
6.1051 °
Axial rake angle(GAMP)
8.5116 °
Torque(TQ)
5 Nm
Body material(BMC)
Steel
Rotational speed maximum(RPMX)
17,300 1/min
Weight of item(WT)
0.332 kg
Overall length(OAL)
44.45 mm
Release date(ValFrom20)
10/20/12
Release pack id(RELEASEPACK)
13.1
