Drill and Tap Kits

Poraus- ja kierteityssarjat

Sandvik Coromant esittää valikoiman suosittuja pora- ja tappikierteityspaketteja. Ne kattavat suosituimmat koot, kierremuodot ja standardit. Jokaisen poran ja kierretapin yhdistelmä takaa taatusti pitkän työkalujen kestoiän, luotettavuuden ja erinomaisen kierrelaadun.

Kaksi (2) CoroDrill® 860-GM -poraa ja kaksi (2) CoroTap-kierteitystyökalua® sisältyvät tilattuihin pakkauksiin.
CoroDrill® 860-GM -poran halkaisija ja pituus vastaavat mukana tulevaa kierretappia. Hinnat näkyvät kunkin tuotesarjan sivulla – esimerkiksi: M4-860.1A0GM-T200PM

CoroTap® 100 -suoralla lastuamisuralla lastuava kierretappi

CoroTap® 200 -kierrekärjen lastuamiskierteet

CoroTap® 300 -kierreurat, lastuavat kierretappit

CoroTap® 400 huippunopeat, lastuamattomat manglaavat kierretappit

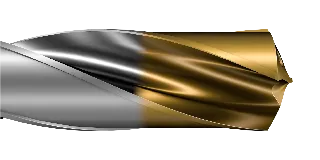

CoroDrill® 860-GM pitkäkestoinen, monimateriaalinen lyhytreikäporaus

Lataa sarjavalikoima

Lataa täyskovametalliset työkalut -esite

Kierretappityypin valitseminen

Poraus- ja kierteityssarjat: elokuva

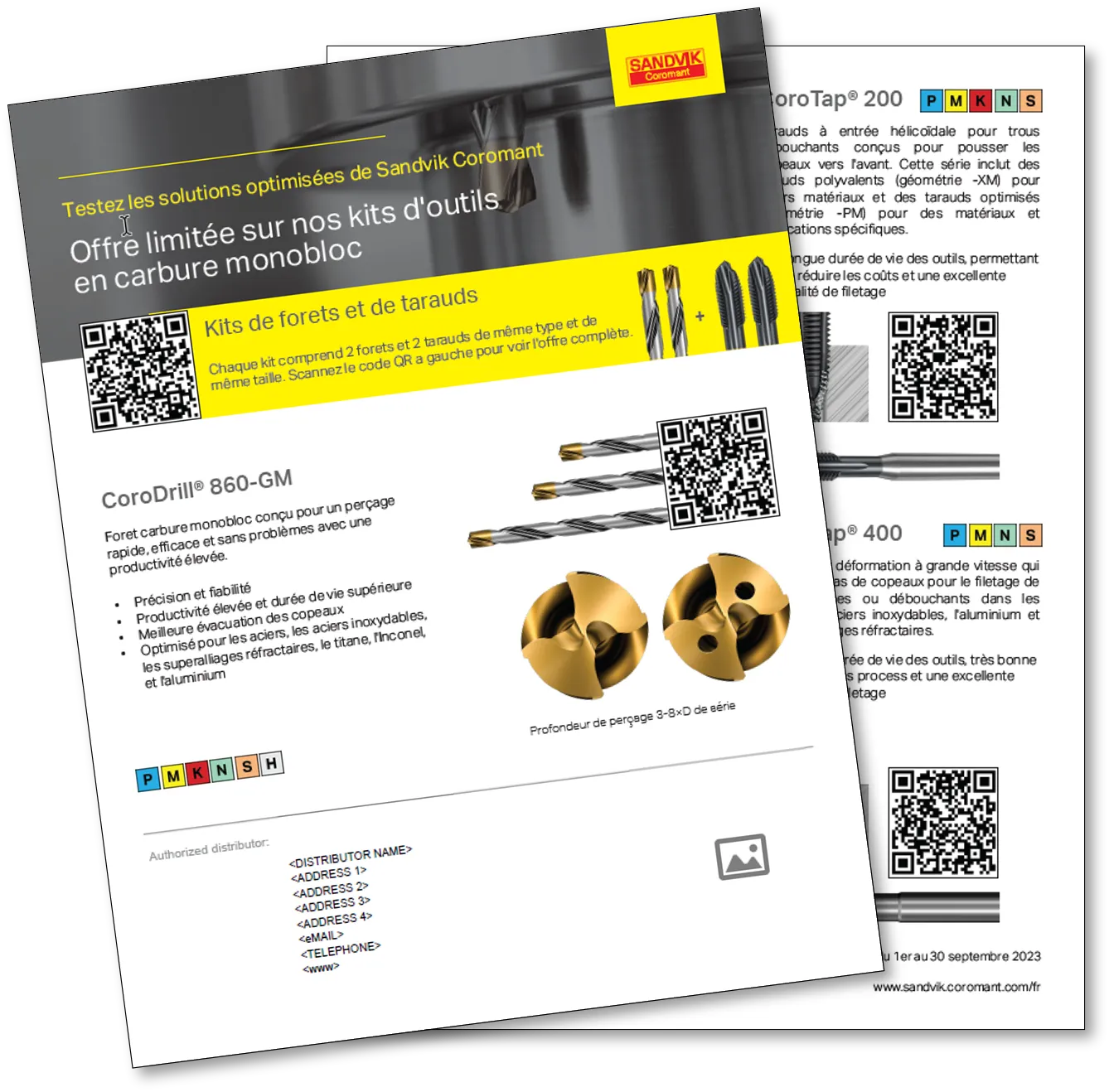

Poraus- ja kierteityssarjat - flyer

Kit options

M4 M8 M12 UNC

M5 M10 M16 UNF

* Japani vain

Huomautus! Sarjat on esitetty varastosta loppu -pakkauksina, mutta ne on koottu tilauksesta varastoiduista porista ja tappeista. Anna pakkauksia tilattaessa vielä 24 tunnin toimitusaika.

Thread type	Kit ordering code	Kit ordering code		xD	Coolant yes or no	ISO	Through/blind	Drill code	Quantity	Tap code	Quantity
M4
M4	8522238	M4-860.1A0GM-T200XM	DiN	5xD	✖	ISO PMKNSH	⬤	860.1-0330-017A0-GM X1BM	2	T200-XM100DA-M4 C110	2
M4	8522244	M4-860.1A1GM-T200XM	DiN	5xD	✔	ISO PMKNSH	⬤	860.1-0330-017A1-GM X1BM	2	T200-XM100DA-M4 C110	2
M4	8522250	M4-860.1A0GM-T300XM	DiN	5xD	✖	ISO PMKNSH	⊘	860.1-0330-017A0-GM X1BM	2	T300-XM100DA-M4 C110	2
M4	8522256	M4-860.1A1GM-T300XM	DiN	5xD	✔	ISO PMKNSH	⊘	860.1-0330-017A1-GM X1BM	2	T300-XM100DA-M4 C110	2
M4	8384951	M4-860.1A0GM-T200PM	DiN	3XD	✖	ISO P	⬤	860.1-0330-010A0-GM X1BM	2	T200-PM101DA-M4 P1PM	2
M4	8385027	M4-860.1A1GM-T200PM	DiN	3XD	✔	ISO P	⬤	860.1-0330-010A1-GM X1BM	2	T200-PM101DA-M4 P1PM	2
M4	8385043	M4-860.1A0GM-T300PM	DiN	3XD	✖	ISO P	⊘	860.1-0330-010A0-GM X1BM	2	T300-PM100DA-M4 P1PM	2
M4	8385059	M4-860.1A1GM-T300PM	DiN	3XD	✔	ISO P	⊘	860.1-0330-010A1-GM X1BM	2	T300-PM100DA-M4 P1PM	2
M4	8385076	M4-860.1A1GM-T400PM	DiN	3XD	✔	ISO P	⬤ ⊘	860.1-0370-011A1-GM X1BM	2	T400-PM100DA-M4 F125	2
M4	8385132	M4-860.1A0GM-T100KM	DiN	3XD	✖	ISO K	⬤ ⊘	860.1-0340-010A0-GM X1BM	2	T100-KM100DA-M4 D210	2
M4	8385138	M4-860.1A1GM-T100KM	DiN	3XD	✔	ISO K	⬤ ⊘	860.1-0340-010A1-GMX1BM	2	T100-KM100DA-M4 D210	2
M4	8521979	M4-860.1A0GM-T200JA PM	JIS	3XD	✖	ISO P	⬤	860.1-0330-010A0-GM X1BM	2	T200-PM100JA-M4 P1PM	2
M4	8522186	M4-860.1A1GM-T200JA PM	JIS	3XD	✔	ISO P	⬤	860.1-0330-010A1-GM X1BM	2	T200-PM100JA-M4 P1PM	2
M4	8522193	M4-860.1A0GM-T300JA PM	JIS	3XD	✖	ISO P	⊘	860.1-0330-010A0-GM X1BM	2	T300-PM100JA-M4 P1PM	2
M4	8522200	M4-860.1A1GM-T300JA PM	JIS	3XD	✔	ISO P	⊘	860.1-0330-010A1-GM X1BM	2	T300-PM100JA-M4 P1PM	2
M4	8528893	M4-860.1A0GM-T100JA KM	JIS	3XD	✖	ISO K	⬤ ⊘	860.1-0330-010A0-GM X1BM	2	T100-KM100JA-M5 D115	2
M4	8528920	M4-860.1A1GM-T100JA KM	JIS	3XD	✔	ISO K	⬤ ⊘	860.1-0340-010A1-GM X1BM	2	T100-KM100JA-M4 D115	2
M5
M5	8522239	M5-860.1A0GM-T200XM	DiN	5xD	✖	ISO PMKNSH	⬤	860.1-0420-021A0-GM X1BM	2	T200-XM100DA-M5 C110	2
M5	8522245	M5-860.1A1GM-T200XM	DiN	5xD	✔	ISO PMKNSH	⬤	860.1-0430-022A1-GM X1BM	2	T200-XM100DA-M5 C110	2
M5	8522251	M5-860.1A0GM-T300XM	DiN	5xD	✖	ISO PMKNSH	⊘	860.1-0420-021A0-GM X1BM	2	T300-XM100DA-M5 C110	2
M5	8522257	M5-860.1A1GM-T300XM	DiN	5xD	✔	ISO PMKNSH	⊘	860.1-0430-022A1-GM X1BM	2	T300-XM100DA-M5 C110	2
M5	8384952	M5-860.1A0GM-T200PM	DiN	3XD	✖	ISO P	⬤	860.1-0420-013A0-GM X1BM	2	T200-PM101DA-M5 P1PM	2
M5	8385028	M5-860.1A1GM-T200PM	DiN	3XD	✔	ISO P	⬤	860.1-0420-013A1-GM X1BM	2	T200-PM101DA-M5 P1PM	2
M5	8385044	M5-860.1A0GM-T300PM	DiN	3XD	✖	ISO P	⊘	860.1-0420-013A0-GM X1BM	2	T300-PM101DA-M5 P1PM	2
M5	8385060	M5-860.1A1GM-T300PM	DiN	3XD	✔	ISO P	⊘	860.1-0420-013A1-GM X1BM	2	T300-PM101DA-M5 P1PM	2
M5	8385077	M5-860.1A1GM-T400PM	DiN	3XD	✔	ISO P	⬤ ⊘	860.1-0460-014A1-GM X1BM	2	T400-PM100DA-M5 F125	2
M5	8385133	M5-860.1A0GM-T100KM	DiN	3XD	✖	ISO K	⬤ ⊘	860.1-0430-013A0-GM X1BM	2	T100-KM100DA-M5 D210	2
M5	8385139	M5-860.1A1GM-T100KM	DiN	3XD	✔	ISO K	⬤ ⊘	860.1-0430-013A1-GM X1BM	2	T100-KM100DA-M5 D210	2
M5	8522180	M5-860.1A0GM-T200JA PM	JIS	3XD	✖	ISO P	⬤	860.1-0420-013A0-GM X1BM	2	T200-PM100JA-M5 P1PM	2
M5	8522187	M5-860.1A1GM-T200JA PM	JIS	3XD	✔	ISO P	⬤	860.1-0420-013A1-GM X1BM	2	T200-PM100JA-M5 P1PM	2
M5	8522194	M5-860.1A0GM-T300JA PM	JIS	3XD	✖	ISO P	⊘	860.1-0420-013A0-GM X1BM	2	T300-PM100JA-M5 P1PM	2
M5	8522201	M5-860.1A1GM-T300JA PM	JIS	3XD	✔	ISO P	⊘	860.1-0420-013A1-GM X1BM	2	T300-PM100JA-M5 P1PM	2
M5	8528894	M5-860.1A0GM-T100JA KM	JIS	3XD	✖	ISO K	⬤ ⊘	860.1-0430-013A0-GM X1BM	2	T100-KM100JA-M5	2
M5	8528921	M5-860.1A1GM-T100JA KM	JIS	3XD	✔	ISO K	⬤ ⊘	860.1-0430-013A1-GM X1BM	2	T100-KM100JA-M5 D115	2
M6
M6	8522240	M6-860.1A0GM-T200XM	DiN	5xD	✖	ISO PMKNSH	⬤	860.1-0500-025A0-GM X1BM	2	T200-XM100DA-M6 C110	2
M6	8522246	M6-860.1A1GM-T200XM	DiN	5xD	✔	ISO PMKNSH	⬤	860.1-0500-025A1-GM X1BM	2	T200-XM100DA-M6 C110	2
M6	8522252	M6-860.1A0GM-T300XM	DiN	5xD	✖	ISO PMKNSH	⊘	860.1-0500-025A0-GM X1BM	2	T300-XM100DA-M6 C110	2
M6	8522258	M6-860.1A1GM-T300XM	DiN	5xD	✔	ISO PMKNSH	⊘	860.1-0500-025A1-GM X1BM	2	T300-XM100DA-M6 C110	2
M6	8384953	M6-860.1A0GM-T200PM	DiN	3XD	✖	ISO P	⬤	860.1-0500-015A0-GM X1BM	2	T200-PM101DA-M6 P1PM	2
M6	8385029	M6-860.1A1GM-T200PM	DiN	3XD	✔	ISO P	⬤	860.1-0500-015A1-GM X1BM	2	T200-PM101DA-M6 P1PM	2
M6	8385045	M6-860.1A0GM-T300PM	DiN	3XD	✖	ISO P	⊘	860.1-0500-015A0-GM X1BM	2	T300-PM101DA-M6 P1PM	2
M6	8385061	M6-860.1A1GM-T300PM	DiN	3XD	✔	ISO P	⊘	860.1-0500-015A1-GM X1BM	2	T300-PM101DA-M6 P1PM	2
M6	8385078	M6-860.1A1GM-T400PM	DiN	3XD	✔	ISO P	⬤ ⊘	860.1-0550-016A1-GM X1BM	2	T400-PM100DA-M6 F125	2
M6	8385134	M6-860.1A0GM-T100KM	DiN	3XD	✖	ISO K	⬤ ⊘	860.1-0510-016A0-GM X1BM	2	T100-KM100DA-M6 D210	2
M6	8385150	M6-860.1A1GM-T100KM	DiN	3XD	✔	ISO K	⬤ ⊘	860.1-0510-016A1-GM X1BM	2	T100-KM100DA-M6 D210	2
M6	8522181	M6-860.1A0GM-T200JA PM	JIS	3XD	✖	ISO P	⬤	860.1-0500-015A0-GM X1BM	2	T200-PM100JA-M6 P1PM	2
M6	8522188	M6-860.1A1GM-T200JA PM	JIS	3XD	✔	ISO P	⬤	860.1-0500-015A1-GM X1BM	2	T200-PM100JA-M6 P1PM	2
M6	8522195	M6-860.1A0GM-T300JA PM	JIS	3XD	✖	ISO P	⊘	860.1-0500-015A0-GM X1BM	2	T300-PM100JA-M6 P1PM	2
M6	8522202	M6-860.1A1GM-T300JA PM	JIS	3XD	✔	ISO P	⬤	860.1-0500-015A1-GM X1BM	2	T300-PM100JA-M6 P1PM	2
M6 *	8528895	M6-860.1A0GM-T100JA KM	JIS	3XD	✖	ISO K	⬤ ⊘	860.1-0510-016A0-GM X1BM	2	T100-KM100JA-M6 D210	2
M6 *	8528922	M6-860.1A1GM-T100JA KM	JIS	3XD	✔	ISO K	⬤ ⊘	860.1-0510-016A1-GM X1BM	2	T100-KM100JA-M6 D210	2
M8
M8	8522241	M8-860.1A0GM-T200XM	DiN	5xD	✖	ISO PMKNSH	⬤	860.1-0680-035A0-GM X1BM	2	T200-XM100DA-M8 C110	2
M8	8522247	M8-860.1A1GM-T200XM	DiN	5xD	✔	ISO PMKNSH	⬤	860.1-0680-035A1-GM X1BM	2	T200-XM100DA-M8 C110	2
M8	8522253	M8-860.1A0GM-T300XM	DiN	5xD	✖	ISO PMKNSH	⊘	860.1-0680-035A0-GM X1BM	2	T300-XM100DA-M8 C110	2
M8	8522259	M8-860.1A1GM-T300XM	DiN	5xD	✔	ISO PMKNSH	⊘	860.1-0680-035A1-GM X1BM	2	T300-XM100DA-M8 C110	2
M8	8384954	M8-860.1A0GM-T200PM	DiN	3XD	✖	ISO P	⬤	860.1-0680-020A0-GM X1BM	2	T200-PM101DA-M8 P1PM	2
M8	8385030	M8-860.1A1GM-T200PM	DiN	3XD	✔	ISO P	⬤	860.1-0680-020A1-GM X1BM	2	T200-PM101DA-M8 P1PM	2
M8	8385046	M8-860.1A0GM-T300PM	DiN	3XD	✖	ISO P	⊘	860.1-0680-020A0-GM X1BM	2	T300-PM101DA-M8 P1PM	2
M8	8385062	M8-860.1A1GM-T300PM	DiN	3XD	✔	ISO P	⊘	860.1-0680-020A1-GM X1BM	2	T300-PM101DA-M8 P1PM	2
M8	8385079	M8-860.1A1GM-T400PM	DiN	3XD	✔	ISO P	⬤ ⊘	860.1-0740-023A1-GM X1BM	2	T400-PM100DA-M8 F125	2
M8	8385135	M8-860.1A0GM-T100KM	DiN	3XD	✖	ISO K	⬤ ⊘	860.1-0690-035A0-GM X1BM	2	T100-KM100DA-M8 D210	2
M8	8385151	M8-860.1A1GM-T100KM	DiN	3XD	✔	ISO K	⬤ ⊘	860.1-0690-020A1-GM X1BM	2	T100-KM100DA-M8 D210	2
M8	8522182	M8-860.1A0GM-T200JA PM	JIS	3XD	✖	ISO P	⊘	860.1-0680-020A0-GM X1BM	2	T200-PM101JA-M8 P1PM	2
M8	8522189	M8-860.1A1GM-T200JA PM	JIS	3XD	✔	ISO P	⬤	860.1-0680-020A1-GM X1BM	2	T200-PM101JA-M8 P1PM	2
M8	8522196	M8-860.1A0GM-T300JA PM	JIS	3XD	✖	ISO P	⊘	860.1-0680-020A0-GM X1BM	2	T300-PM101JA-M8 P1PM	2
M8	8522203	M8-860.1A1GM-T300JA PM	JIS	3XD	✔	ISO P	⊘	860.1-0680-020A1-GM X1BM	2	T300-PM101JA-M8 P1PM	2
M8 *	8528896	M8-860.1A0GM-T100JA KM	JIS	3XD	✖	ISO K	⬤ ⊘	860.1-0680-035A0-GM X1BM	2	T100-KM101JA-M8 D210	2
M8 *	8528923	M8-860.1A1GM-T100JA KM	JIS	3XD	✔	ISO K	⬤ ⊘	860.1-0690-020A1-GM X1BM	2	T100-KM101JA-M8 D210	2
M10
M10	8522242	M10-860.1A0GM-T200XM	DiN	5xD	✖	ISO PMKNSH	⬤	860.1-0850-044A0-GM X1BM	2	T200-XM100DA-M10 C110	2
M10	8522248	M10-860.1A1GM-T200XM	DiN	5xD	✔	ISO PMKNSH	⬤	860.1-0850-044A1-GM X1BM	2	T200-XM100DA-M10 C110	2
M10	8522254	M10-860.1A0GM-T300XM	DiN	5xD	✖	ISO PMKNSH	⊘	860.1-0850-044A0-GM X1BM	2	T300-XM100DA-M10 C110	2
M10	8522260	M10-860.1A1GM-T300XM	DiN	5xD	✔	ISO PMKNSH	⊘	860.1-0850-044A1-GM X1BM	2	T300-XM100DA-M10 C110	2
M10	8384955	M10-860.1A0GM-T200PM	DiN	3XD	✖	ISO P	⬤	860.1-0850-027A0-GM X1BM	2	T200-PM101DA-M10 P1PM	2
M10	8385031	M10-860.1A1GM-T200PM	DiN	3XD	✔	ISO P	⬤	860.1-0850-027A1-GM X1BM	2	T200-PM101DA-M10 P1PM	2
M10	8385047	M10-860.1A0GM-T300PM	DiN	3XD	✖	ISO P	⊘	860.1-0850-027A0-GM X1BM	2	T300-PM101DA-M10 P1PM	2
M10	8385063	M10-860.1A1GM-T300PM	DiN	3XD	✔	ISO P	⊘	860.1-0850-027A1-GM X1BM	2	T300-PM101DA-M10 P1PM	2
M10	8385120	M10-860.1A1GM-T400PM	DiN	3XD	✔	ISO P	⬤ ⊘	860.1-0930-029A1-GM X1BM	2	T400-PM100DA-M10 F125	2
M10	8385136	M10-860.1A0GM-T100KM	DiN	3XD	✖	ISO K	⬤ ⊘	860.1-0860-027A0-GM X1BM	2	T100-KM100DA-M10 D210	2
M10	8385152	M10-860.1A1GM-T100KM	DiN	3XD	✔	ISO K	⬤ ⊘	860.1-0860-027A1-GM X1BM	2	T100-KM100DA-M10 D210	2
M10	8522183	M10-860.1A0GM-T200JA PM	JIS	3XD	✖	ISO P	⬤	860.1-0850-027A0-GM X1BM	2	T200-PM101JA-M10 P1PM	2
M10	8522190	M10-860.1A1GM-T200JA PM	JIS	3XD	✔	ISO P	⬤	860.1-0850-027A1-GM X1BM	2	T200-PM101JA-M10 P1PM	2
M10	8522197	M10-860.1A0GM-T300JA PM	JIS	3XD	✖	ISO P	⊘	860.1-0850-027A0-GM X1BM	2	T300-PM101JA-M10 P1PM	2
M10	8522204	M10-860.1A1GM-T300JA PM	JIS	3XD	✔	ISO P	⊘	860.1-0850-027A1-GM X1BM	2	T300-PM101JA-M10 P1PM	2
M10 *	8528897	M10-860.1A0GM-T100JA KM	JIS	3XD	✖	ISO K	⬤ ⊘	860.1-0860-027A0-GM X1BM	2	T100-KM101JA-M10 D210	2
M10 *	8528924	M10-860.1A1GM-T100JA KM	JIS	3XD	✔	ISO K	⬤ ⊘	860.1-0860-027A1-GM X1BM	2	T100-KM101JA-M10 D210	2
M12
M12	8522243	M12-860.1A0GM-T200XM	DiN	5xD	✖	ISO PMKNSH	⬤	860.1-1020-052A0-GM X1BM	2	T200-XM101DA-M12 C110	2
M12	8522249	M12-860.1A1GM-T200XM	DiN	5xD	✔	ISO PMKNSH	⬤	860.1-1020-052A1-GM X1BM	2	T200-XM101DA-M12 C110	2
M12	8522255	M12-860.1A0GM-T300XM	DiN	5xD	✖	ISO PMKNSH	⊘	860.1-1020-052A0-GM X1BM	2	T300-XM101DA-M12 C110	2
M12	8522261	M12-860.1A1GM-T300XM	DiN	5xD	✔	ISO PMKNSH	⊘	860.1-1020-052A1-GM X1BM	2	T300-XM101DA-M12 C110	2
M12	8384956	M12-860.1A0GM-T200PM	DiN	3XD	✖	ISO P	⬤	860.1-1020-032A0-GM X1BM	2	T200-PM101DA-M12 P1PM	2
M12	8385032	M12-860.1A1GM-T200PM	DiN	3XD	✔	ISO P	⬤	860.1-1020-032A1-GM X1BM	2	T200-PM101DA-M12 P1PM	2
M12	8385048	M12-860.1A0GM-T300PM	DiN	3XD	✖	ISO P	⊘	860.1-1020-032A0-GM X1BM	2	T300-PM101DA-M12 P1PM	2
M12	8385064	M12-860.1A1GM-T300PM	DiN	3XD	✔	ISO P	⊘	860.1-1020-032A1-GM X1BM	2	T300-PM101DA-M12 P1PM	2
M12	8385121	M12-860.1A1GM-T400PM	DiN	3XD	✔	ISO P	⬤ ⊘	860.1-1120-035A1-GM X1BM	2	T400-PM100DA-M12 F125	2
M12	8385137	M12-860.1A0GM-T100KM	DiN	3XD	✖	ISO K	⬤ ⊘	860.1-1030-052A0-GM X1BM	2	T100-KM101DA-M12 D210	2
M12	8385153	M12-860.1A1GM-T100KM	DiN	3XD	✔	ISO K	⬤ ⊘	860.1-1030-032A1-GM X1BM	2	T100-KM101DA-M12 D210	2
M12	8522184	M12-860.1A0GM-T200JA PM	JIS	3XD	✖	ISO P	⬤	860.1-1020-032A0-GM X1BM	2	T200-PM101JA-M12 P1PM	2
M12	8522191	M12-860.1A1GM-T200JA PM	JIS	3XD	✔	ISO P	⬤	860.1-1020-032A1-GM X1BM	2	T200-PM101JA-M12 P1PM	2
M12	8522198	M12-860.1A0GM-T300JA PM	JIS	3XD	✖	ISO P	⊘	860.1-1020-032A0-GM X1BM	2	T300-PM101JA-M12 P1PM	2
M12	8522205	M12-860.1A1GM-T300JA PM	JIS	3XD	✔	ISO P	⊘	860.1-1020-032A1-GM X1BM	2	T300-PM101JA-M12 P1PM	2
M12 *	8528898	M12-860.1A0GM-T100JA KM	JIS	3XD	✖	ISO K	⬤ ⊘	860.1-1040-052A0-GM X1BM	2	T100-KM101JA-M12 D210	2
M12 *	8528925	M12-860.1A1GM-T100JA KM	JIS	3XD	✔	ISO K	⬤ ⊘	860.1-1030-032A1-GM X1BM	2	T100-KM101JA-M12 D210	2
M16
M16	8522185	M16-860.1A0GM-T200JA PM	JIS	3XD	✖	ISO P	⬤	860.1-1400-055A0-GM X1BM	2	T200-PM101JA-M16 P1PM	2
M16	8522192	M16-860.1A1GM-T200JA PM	JIS	3XD	✔	ISO P	⬤	860.1-1400-055A1-GM X1BM	2	T200-PM101JA-M16 P1PM	2
M16	8522199	M16-860.1A0GM-T300JA PM	JIS	3XD	✖	ISO P	⊘	860.1-1400-055A0-GM X1BM	2	T300-PM101JA-M16 P1PM	2
M16	8522206	M16-860.1A1GM-T300JA PM	JIS	3XD	✔	ISO P	⊘	860.1-1400-055A1-GM X1BM	2	T300-PM101JA-M16 P1PM	2
M16	8528899	M16-860.1A0GM-T100JA KM	JIS	3XD	✖	ISO K	⬤ ⊘	860.1-1400-035A0-GM X1BM	2	T100-KM101JA-M16 D115	2
M16	8528926	M16-860.1A1GM-T100JA KM	JIS	3XD	✔	ISO K	⬤ ⊘	860.1-1400-055A1-GM X1BM	2	T100-KM101JA-M16 D115	2

Thread type	Kit ordering code	Kit ordering code		xD	Coolant yes or no	ISO	Through/blind	Drill code	Quantity	Tap code	Quantity
UNC
1/4-20UNC	8522207	1/4-20-860.1A0GM-T200PM	DiN/ANSI	3XD	✖	ISO P	⬤	860.1-0510-016A0-GM X1BM	2	T200-PM100AE-1/4 P1PM	2
1/4-20UNC	8522212	1/4-20-860.1A1GM-T200PM	DiN/ANSI	3XD	✔	ISO P	⬤	860.1-0510-016A1-GM X1BM	2	T200-PM100AE-1/4 P1PM	2
1/4-20UNC	8522218	1/4-20-860.1A0GM-T300PM	DiN/ANSI	3XD	✖	ISO P	⊘	860.1-0510-016A0-GM X1BM	2	T300-PM100AE-1/4 P1PM	2
1/4-20UNC	8522223	1/4-20-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-0510-016A1-GM X1BM	2	T300-PM100AE-1/4 P1PM	2
1/4-20UNC	8522262	1/4-20-860.1A0GM-T100KM	DiN/ANSI	3XD	✖	ISO K	⬤ ⊘	860.1-0510-016A0-GM X1BM	2	T100-KM100AE-1/4 D210	2
1/4-20UNC	8522267	1/4-20-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-0510-016A1-GM X1BM	2	T100-KM100AE-1/4 D210	2
1/2-13 UNC	8522211	1/2-13-860.1A0GM-T200PM	DiN/ANSI	5xD	✖	ISO P	⬤	860.1-1080-052A0-GM X1BM	2	T200-PM101AE-1/2 P1PM	2
1/2-13 UNC	8550464	1/2-13-860.1A0GM-T200XM	DiN/ANSI	5xD	✖	ISO PMKNSH	⬤	860.1-1080-052A0-GM X1BM	2	T200-XM101AE-1/2 C110	2
1/2-13 UNC	8522216	1/2-13-860.1A1GM-T200PM	DiN/ANSI	3XD	✔	ISO P	⬤	860.1-1080-034A1-GM X1BM	2	T200-PM101AE-1/2 P1PM	2
1/2-13 UNC	8550469	1/2-13-860.1A1GM-T200XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⬤	860.1-1080-052A1-GM X1BM	2	T200-XM101AE-1/2 C110	2
1/2-13 UNC	8522222	1/2-13-860.1A0GM-T300PM	DiN/ANSI	5XD	✖	ISO P	⊘	860.1-1080-052A0-GM X1BM	2	T300-PM101AE-1/2 P1PM	2
1/2-13 UNC	8550475	1/2-13-860.1A0GM-T300XM	DiN/ANSI	5XD	✖	ISO PMKNSH	⊘	860.1-1080-052A0-GM X1BM	2	T300-XM101AE-1/2 C110	2
1/2-13 UNC	8522227	1/2-13-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-1080-034A1-GM X1BM	2	T300-PM101AE-1/2 P1PM	2
1/2-13 UNC	8550480	1/2-13-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-1080-052A1-GM X1BM	2	T300-XM101AE-1/2 C110	2
1/4-20 UNC	8550460	860.1-0510-026A0-GM X1BM	DiN/ANSI	5XD	✖	ISO PMKNSH	⬤	860.1-1080-052A1-GM X1BM	2	T200-XM100AE-1/4 C110	2
1/4-20 UNC	8550471	1/4-20-860.1A0GM-T300XM	DiN/ANSI	5XD	✖	ISO PMKNSH	⊘	860.1-0510-026A0-GM X1BM	2	T300-XM100AE-1/4 C110	2
1/4-20 UNC	8550465	1/4-20-860.1A1GM-T200XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⬤	860.1-0510-026A1-GM X1BM	2	T200-XM100AE-1/4 C110	2
1/4-20 UNC	8550476	1/4-20-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-0510-026A1-GM X1BM	2	T300-XM100AE-1/4 C110	2
1/2-13 UNC	8522266	1/2-13-860.1A0GM-T100KM	DiN/ANSI	5XD	✖	ISO K	⬤ ⊘	860.1-1080-052A0-GM X1BM	2	T100-KM101AE-1/2 D210	2
1/2-13 UNC	8522271	1/2-13-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-1080-034A1-GM X1BM	2	T100-KM101AE-1/2 D210	2
3/8-16 UNC	8522209	3/8-16-860.1A0GM-T200PM	DiN/ANSI	3XD	✖	ISO P	⬤	860.1-0800-025A0-GM X1BM	2	T200-PM100AE-3/8 P1PM	2
3/8-16 UNC	8550462	3/8-16-860.1A0GM-T200XM	DiN/ANSI	5XD	✖	ISO PMKNSH	⬤	860.1-0800-038A0-GM X1BM	2	T200-XM100AE-3/8 C110	2
3/8-16 UNC	8522214	3/8-16-860.1A1GM-T200PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-0800-025A1-GM X1BM	2	T200-PM100AE-3/8 P1PM	2
3/8-16 UNC	8550467	3/8-16-860.1A1GM-T200XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⬤	860.1-0800-038A1-GM X1BM	2	T200-XM100AE-3/8 C110	2
3/8-16 UNC	8522220	3/8-16-860.1A0GM-T300PM	DiN/ANSI	5XD	✖	ISO PMKNSH	⊘	860.1-0800-025A0-GM X1BM	2	T300-PM100AE-3/8 P1PM	2
3/8-16 UNC	8550473	3/8-16-860.1A0GM-T300XM	DiN/ANSI	5XD	✖	ISO PMKNSH	⊘	860.1-0800-038A0-GM X1BM	2	T300-XM100AE-3/8 C110	2
3/8-16 UNC	8522225	3/8-16-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-0800-025A1-GM X1BM	2	T300-PM100AE-3/8 P1PM	2
3/8-16 UNC	8550478	3/8-16-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-0800-038A1-GM X1BM	2	T300-XM100AE-3/8 C110	2
5/16-1 UNC	8550461	5/16-18-860.1A0GM-T200XM	DiN/ANSI	3XD	✖	ISO PMKNSH	⬤	860.1-0660-020A0-GM X1BM	2	T200-XM100AE-5/16 C110	2
5/16-1 UNC	8550472	5/16-18-860.1A0GM-T300XM	DiN/ANSI	3XD	✖	ISO PMKNSH	⊘	860.1-0660-020A0-GM X1BM	2	T300-XM100AE-5/16 C110	2
5/16-1 UNC	8550466	5/16-18-860.1A1GM-T200XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⬤	860.1-0660-034A1-GM X1BM	2	T200-XM100AE-5/16 C110	2
5/16-1 UNC	8550477	5/16-18-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-0660-034A1-GM X1BM	2	T300-XM100AE-5/16 C110	2
3/8-16 UNC	8522264	3/8-16-860.1A0GM-T100KM	DiN/ANSI	3XD	✖	ISO K	⬤ ⊘	860.1-0800-025A0-GM X1BM	2	T100-KM100AE-3/8 D210	2
3/8-16 UNC	8522269	3/8-16-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-0800-025A1-GM X1BM	2	T100-KM100AE-3/8 D210	2
5/8-11 UNC	8522217	5/8-11-860.1A1GM-T200PM	DiN/ANSI	3XD	✔	ISO P	⬤	860.1-1350-038A1-GM X1BM	2	T200-PM101AE-5/8 P1PM	2
5/8-11 UNC	8550470	5/8-11-860.1A1GM-T200XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⬤	860.1-1350-055A1-GM X1BM	2	T200-XM101AE-5/8 C110	2
5/8-11 UNC	8522228	5/8-11-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-1350-038A1-GM X1BM	2	T300-PM101AE-5/8 P1PM	2
7/16-1 UNC	8550481	5/8-11-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-0950-044A0-GM X1BM	2	T300-XM101AE-7/16 C110	2
7/16-1 UNC	8550463	7/16-14-860.1A0GM-T200XM	DiN/ANSI	5XD	✖	ISO PMKNSH	⬤	860.1-1350-055A1-GM X1BM	2	T300-XM101AE-5/8 C110	2
7/16-1 UNC	8550474	7/16-14-860.1A0GM-T300XM	DiN/ANSI	5XD	✖	ISO PMKNSH	⊘	860.1-0950-044A0-GM X1BM	2	T300-XM101AE-7/16 C110	2
7/16-1 UNC	8550468	7/16-14-860.1A1GM-T200XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⬤	860.1-0950-044A0-GM X1BM	2	T300-XM101AE-7/16 C110	2
7/16-1 UNC	8550479	7/16-14-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-0950-044A1-GM X1BM	2	T300-XM101AE-7/16 C110	2
5/8-11 UNC	8522272	5/8-11-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-1350-038A1-GM X1BM	2	T100-KM101AE-5/8 D210	2
5/16-18 UNC	8522208	5/16-18-860.1A0GM-T200PM	DiN/ANSI	3XD	✖	ISO P	⬤	860.1-0660-020A0-GM X1BM	2	T200-PM100AE-5/16 P1PM	2
5/16-18 UNC	8522213	5/16-18-860.1A1GM-T200PM	DiN/ANSI	3XD	✔	ISO P	⬤	860.1-0660-020A1-GM X1BM	2	T200-PM100AE-5/16 P1PM	2
5/16-18 UNC	8522219	5/16-18-860.1A0GM-T300PM	DiN/ANSI	3XD	✖	ISO P	⊘	860.1-0660-020A0-GM X1BM	2	T300-PM100AE-5/16 P1PM	2
5/16-18 UNC	8522224	5/16-18-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-0660-020A1-GM X1BM	2	T300-PM100AE-5/16 P1PM	2
5/16-18 UNC	8522263	5/16-18-860.1A0GM-T100KM	DiN/ANSI	3XD	✖	ISO K	⬤ ⊘	860.1-0660-020A0-GM X1BM	2	T100-KM100AE-5/16 D210	2
5/16-18 UNC	8522268	5/16-18-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-0660-020A1-GM X1BM	2	T100-KM100AE-5/16 D210	2
7/16-14 UNC	8522210	7/16-14-860.1A0GM-T200PM	DiN/ANSI	3XD	✖	ISO P	✔	860.1-0950-030A0-GM X1BM	2	T200-PM101AE-7/16 P1PM	2
7/16-14 UNC	8522215	7/16-14-860.1A1GM-T200PM	DiN/ANSI	3XD	✔	ISO P	✔	860.1-0950-030A1-GM X1BM	2	T200-PM101AE-7/16 P1PM	2
7/16-14 UNC	8522221	7/16-14-860.1A0GM-T300PM	DiN/ANSI	3XD	✖	ISO P	⊘	860.1-0950-030A0-GM X1BM	2	T300-PM101AE-7/16 P1PM	2
7/16-14 UNC	8522226	7/16-14-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-0950-030A1-GM X1BM	2	T300-PM101AE-7/16 P1PM	2
7/16-14 UNC	8522265	7/16-14-860.1A0GM-T100KM	DiN/ANSI	3XD	✖	ISO K	⬤ ⊘	860.1-0950-030A0-GM X1BM	2	T100-KM101AE-7/16 D210	2
7/16-14 UNC	8522270	7/16-14-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-0950-030A1-GM X1BM	2	T100-KM101AE-7/16 D210	2
UNF
1/2-20 UNF	8522237	1/2-20-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-1150-035A1-GM X1BM	2	T300-PM101AF-1/2 P1PM	2
1/2-20 UNF	8550490	1/2-20-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-1150-051A1-GM X1BM	2	T300-XM101AF-1/2 C110	2
1/4-28 UNF	8550482	1/4-28-860.1A0GM-T300XM	DiN/ANSI	5XD	✖	ISO PMKNSH	⊘	860.1-0550-028A0-GM X1BM	2	T300-XM100AF-1/4 C110	2
1/4-28 UNF	8550486	1/4-28-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-0550-028A1-GM X1BM	2	T300-XM100AF-1/4 C110	2
1/2-20 UNF	8522281	1/2-20-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-1150-035A1-GM X1BM	2	T100-KM101AF-1/2 D210	2
1/4-28UNF	8522229	1/4-28-860.1A0GM-T300PM	DiN/ANSI	3XD	✖	ISO P	⊘	860.1-0550-016A0-GM X1BM	2	T300-PM100AF-1/4 P1PM	2
1/4-28UNF	8522233	1/4-28-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-0550-016A1-GM X1BM	2	T300-PM100AF-1/4 P1PM	2
1/4-28UNF	8522273	1/4-28-860.1A0GM-T100KM	DiN/ANSI	3XD	✖	ISO K	⬤ ⊘	860.1-0550-016A0-GM X1BM	2	T100-KM100AF-1/4 D210	2
1/4-28UNF	8522277	1/4-28-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-0550-016A1-GM X1BM	2	T100-KM100AF-1/4 D210	2
3/8-24 UNF	8522231	3/8-24-860.1A0GM-T300PM	DiN/ANSI	3XD	✖	ISO P	⊘	860.1-0850-027A0-GM X1BM	2	T300-PM100AF-3/8 P1PM	2
3/8-24 UNF	8550484	3/8-24-860.1A0GM-T300XM	DiN/ANSI	5XD	✖	ISO PMKNSH	⊘	860.1-0850-044A0-GM X1BM	2	T300-XM100AF-3/8 C110	2
3/8-24 UNF	8522235	3/8-24-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-0850-027A1-GM X1BM	2	T300-PM100AF-3/8 P1PM	2
3/8-24 UNF	8550488	3/8-24-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-0850-044A1-GM X1BM	2	T300-XM100AF-3/8 C110	2
5/16-2 UNF	8550483	5/16-24-860.1A0GM-T300XM	DiN/ANSI	5XD	✖	ISO PMKNSH	⊘	860.1-0690-035A0-GM X1BM	2	T300-XM100AF-5/16 C110	2
5/16-2 UNF	8550487	5/16-24-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-0690-035A1-GM X1BM	2	T300-XM100AF-5/16 C110	2
3/8-24 UNF	8522275	3/8-24-860.1A0GM-T100KM	DiN/ANSI	3XD	✖	ISO K	⬤ ⊘	860.1-0850-027A0-GM X1BM	2	T100-KM100AF-3/8 D210	2
3/8-24 UNF	8522279	3/8-24-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-0850-027A1-GM X1BM	2	T100-KM100AF-3/8 D210	2
5/16-24 UNF	8522230	5/16-24-860.1A0GM-T300PM	DiN/ANSI	3XD	✖	ISO P	⊘	860.1-0690-035A0-GM X1BM	2	T300-PM100AF-5/16 P1PM	2
5/16-24 UNF	8522234	5/16-24-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-0690-020A1-GM X1BM	2	T300-PM100AF-5/16 P1PM	2
7/16-2 UNF	8550485	7/16-20-860.1A0GM-T300XM	DiN/ANSI	3XD	✖	ISO PMKNSH	⊘	860.1-0980-030A0-GM X1BM	2	T300-XM101AF-7/16 C110	2
7/16-2 UNF	8550489	7/16-20-860.1A1GM-T300XM	DiN/ANSI	5XD	✔	ISO PMKNSH	⊘	860.1-0980-044A1-GM X1BM	2	T300-XM101AF-7/16 C110	2
5/16-24 UNF	8522274	5/16-24-860.1A0GM-T100KM	DiN/ANSI	3XD	✖	ISO K	⬤ ⊘	860.1-0690-035A0-GM X1BM	2	T100-KM100AF-5/16 D210	2
5/16-24 UNF	8522278	5/16-24-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-0690-020A1-GM X1BM	2	T100-KM100AF-5/16 D210	2
7/16-20 UNF	8522232	7/16-20-860.1A0GM-T300PM	DiN/ANSI	3XD	✖	ISO P	⊘	860.1-0980-030A0-GM X1BM	2	T300-PM101AF-7/16 P1PM	2
7/16-20 UNF	8522236	7/16-20-860.1A1GM-T300PM	DiN/ANSI	3XD	✔	ISO P	⊘	860.1-0980-030A1-GM X1BM	2	T300-PM101AF-7/16 P1PM	2
7/16-20 UNF	8522276	7/16-20-860.1A0GM-T100KM	DiN/ANSI	3XD	✖	ISO K	⬤ ⊘	860.1-0980-030A0-GM X1BM	2	T100-KM101AF-7/16 D210	2
7/16-20 UNF	8522280	7/16-20-860.1A1GM-T100KM	DiN/ANSI	3XD	✔	ISO K	⬤ ⊘	860.1-0980-030A1-GM X1BM	2	T100-KM101AF-7/16 D210	2
