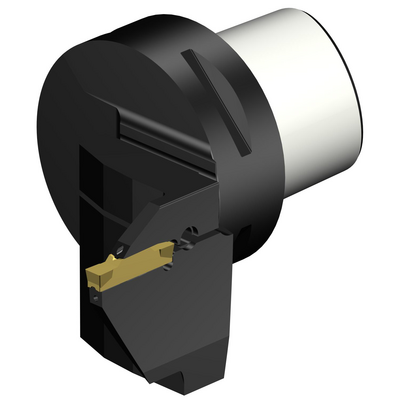

C6-RF123J25CE-175Bcontent_copy

C6-RF123J25CE-175B

Specific representation
Being replaced by C2A-CC6-RFJ18B-175CB
Available
Different clamping system vs the original product but compatible with original inserts
Made-to-order
Package quantity: 1
ISO: C6-RF123J25CE-175Bfile_copy
Material Id: 6799008file_copy
EAN: 26799008file_copy
ANSI: C6-RF123J25CE-175Bfile_copy
Technical illustrations
Technical illustrations
Product data
Cutting depth maximum (CDX)info
25 mmSearch Icon
Axial groove inside diameter minimum(DAXIN)info
175 mmSearch Icon
Maximum axial groove outside diameter(DAXX)info
500 mmSearch Icon
Axial groove support direction(AXGSUP)info
2Search Icon
Clamping type code(MTP)info
clamp on top of insertSearch Icon
Insert type(CUTINT_MASTER)info
CoroCut 2 -size J (N123J2-0500-0004-TF)Search Icon
Insert seat - metric(SSC_M)info
JSearch Icon
Connection - machine side(ADINTMS)info
Coromant Capto (bolt and segment clamping) -size C6Search Icon
Workpiece side body angle (BAWS)info
0 °Search Icon
Maximum overhang (OHX)info
70 mmSearch Icon
Hand (HAND)info
RightSearch Icon
Coolant entry style(CNSC)info
axial concentric and radial entrySearch Icon
Coolant exit style(CXSC)info
axial inclined exitSearch Icon
Coolant pressure(CP)info
150 barSearch Icon
Connection diameter machine side(DCONMS)info
63 mmSearch Icon
Functional length(LF)info
70 mmSearch Icon
Functional width(WF)info
39 mmSearch Icon
Functional height(HF)info
0 mmSearch Icon
Overall length(OAL)info
108 mmSearch Icon
Weight of item(WT)info
1.001 kgSearch Icon
Insert seat size code imperial view(SSC_N)info
JSearch Icon
Release date(ValFrom20)info
9/22/15Search Icon
Release pack id(RELEASEPACK)info
15.2Search Icon
