R216.34-14040-BC26K 1640
R216.34-14040-BC26K 1640

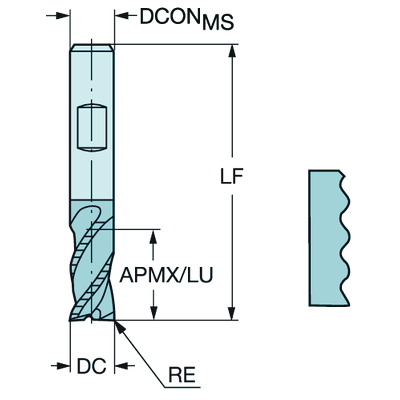

Generic representation
Available
Package quantity: 1
ISO: R216.34-14040-BC26K 1640
Material Id: 5743372
EAN: 11589465
ANSI: R216.34-14040-BC26K 1640
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter
(DC)
14 mm
Tool cutting edge angle
(KAPR)
90 °
Cutting diameter face contact(DCF)
13.2 mm
Corner radius
(RE)
0.4 mm
Depth of cut maximum
(APMX)
26 mm
Rotational speed maximum(RPMX)
80,000 1/min
Depth of cut maximum(APMX_PFW)
26 mm
Center cutting capability(CCC)
Yes
Depth of cut maximum(APMX_FFW)
26 mm
Usable length
(LU)
26 mm
Peripheral effective cutting edge count(ZEFP)
4
Connection - machine side(ADINTMS)
Weldon (DIN6535-HB) -metric: 14
Maximum ramping angle(RMPX_FFW)
5 °
Grade
(GRADE)
1640
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Shank standard group(BSG)
DIN 6527 L
Functional length(LF)
83 mm
Tolerance class cutting diameter(TCDC)
h12
Interupted edge property(IEP)
Yes
Chip breaker(CBMD)
HR
Radial rake angle(GAMF)
10.5 °
Axial rake angle(GAMP)
13.5 °
Flute helix angle(FHA)
40 °
Weight of item(WT)
0.179 kg
Overall length(OAL)
83 mm
Release date(ValFrom20)
11/08/2003
Release pack id(RELEASEPACK)
03.2
