Generic representation
Available
Package quantity: 10
ISO: N123T3-0080-0000-GS 1125
Material Id: 5736398
EAN: 12360633
ANSI: N123T3-0080-0000-GS 1125
Start values (Primary (Radial) KAPR 90 deg)
p
fn0.04 mm/r (0.02 - 0.08)
vc245 m/min (325 - 210)
m
fn0.04 mm/r (0.02 - 0.08)
vc200 m/min (260 - 170)
n
fn0.04 mm/r (0.02 - 0.08)
vc1500 m/min (1900 - 190)

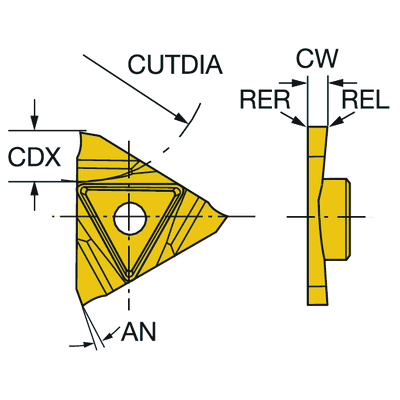

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
GS
Operation type
(CTPT)
finishing
Insert mounting style code(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut 3 -style T
Cutting edge count(CEDC)
3
Insert seat - metric(SSC_M)
T
Cutting width
(CW)
0.8 mm
Cutting width lower tolerance(CWTOLL)
-0.02 mm
Cutting width upper tolerance(CWTOLU)
0.02 mm
Corner radius left(REL)
0 mm
Corner radius right(RER)
0 mm
Corner radius lower tolerance(RETOLL)
0 mm
Corner radius upper tolerance(RETOLU)
0.05 mm
Cutting depth maximum
(CDX)
1.8 mm
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
1125
Coating(COATING)
PVD TiAlN
Insert thickness(S)
3.5 mm
Clearance angle major(AN)
5 °
Weight of item(WT)
0.0035 kg
Insert seat size code imperial view(SSC_N)
T
Release date(ValFrom20)
2/12/09
Release pack id(RELEASEPACK)
09.1
