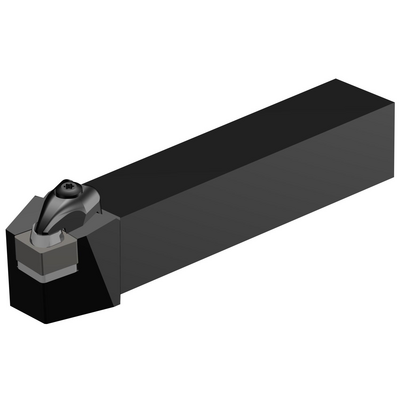

Specific representation
Made-to-order
Package quantity: 1
ISO: DCRNR 164DM1-2
Material Id: 5730785
EAN: 11582653
ANSI: DCRNR 164DM1-2
Technical illustrations
Generic representation
Product data
Tool cutting edge angle(KAPR_1)
75 °
Lead angle(PSIR)
15 °
Clamping type code(MTP)
clamp on top of insert and into hole
Insert type(CUTINT_MASTER)
CNGQ 120708 (100deg)
Connection - machine side(ADINTMS)
Rectangular shank -inch: 1 x 1
Maximum ramping angle
(RMPX)
0 °
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
34.29 mm
Hand
(HAND)
Right
Coolant exit style(CXSC)
no coolant exit
Coolant entry style(CNSC)
without coolant entry
Shank width(B)
25.4 mm
Shank height(H)
25.4 mm
Functional length(LF)
152.4 mm
Functional width(WF)
26.6192 mm
Functional height(HF)
25.4 mm
Orthogonal rake angle(GAMO)
-6 °
Inclination angle(LAMS)
-6 °
Torque(TQ)
3.9 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.739 kg
Master insert identification(MIID)
CNGQ 12 07 08
Overall length(OAL)
152.4 mm
Insert seat - metric(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
8/12/02
Release pack id(RELEASEPACK)
02.2
