Generic representation
Available
Package quantity: 10
ISO: N123U3-0100-0000-CS 1125
Material Id: 5737309
EAN: 12356094
ANSI: N123U3-0100-0000-CS 1125
Start values (Primary (Radial) KAPR 90 deg)
p
fn0.002 in/r (0.001 - 0.004)
vc750 sfm (990 - 630)
m
fn0.002 in/r (0.001 - 0.004)
vc630 sfm (860 - 510)
n
fn0.002 in/r (0.001 - 0.004)
vc4950 sfm (6150 - 620)
s
fn0.002 in/r (0.001 - 0.004)
vc145 sfm (190 - 120)

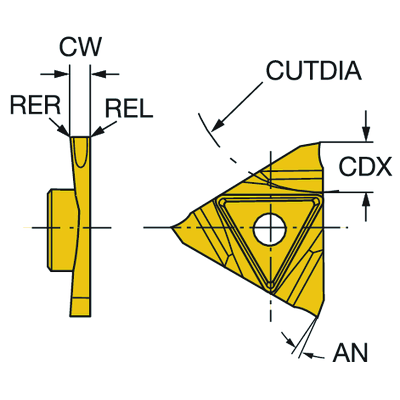

Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
CS
Operation type
(CTPT)
finishing
Insert mounting style code(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut 3 -style U
Cutting edge count(CEDC)
3
Insert seat(SSC_M)
U
Cutting width
(CW)
0.0394 inch
Cutting width lower tolerance(CWTOLL)
-0.002 inch
Cutting width upper tolerance(CWTOLU)
0.002 inch
Corner radius left(REL)
0 inch
Corner radius right(RER)
0 inch
Corner radius lower tolerance(RETOLL)
0 inch
Corner radius upper tolerance(RETOLU)
0.002 inch
Cutting depth maximum
(CDX)
0.1693 inch
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
1125
Coating(COATING)
PVD TiAlN
Insert thickness(S)
0.1181 inch
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0049 lb
Insert seat size code imperial view(SSC_N)
U
Release date(ValFrom20)
10/02/2009
Release pack id(RELEASEPACK)
09.1
