2N342-2500-PC 1730
2N342-2500-PC 1730
Generic representation
Being replaced by 2N342-2500-PD P2BM
Available
Different clamping system vs the original product but compatible with original inserts
Out of stock
Package quantity: 1
ISO: 2N342-2500-PC 1730
Material Id: 6732646
EAN: 26732646
ANSI: 2N342-2500-PC 1730
Technical illustrations
Generic representation

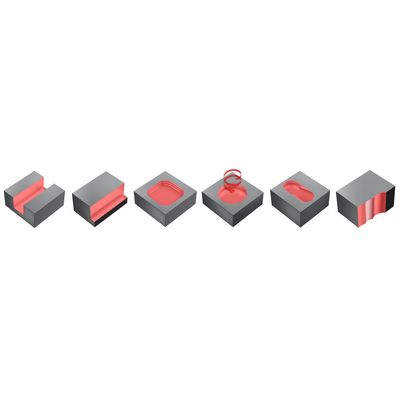

Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter
(DC)
25 mm
Tool cutting edge angle
(KAPR)
90 °
Cutting diameter face contact(DCF)
24.5 mm
Corner chamfer(KCH)
45 °
Corner chamfer width(CHW)
0.25 mm
Depth of cut maximum
(APMX)
52 mm
Rotational speed maximum(RPMX)
7,400 1/min
Depth of cut maximum(APMX_PFW)
52 mm
Depth of cut maximum(APMX_FFW)
52 mm
Usable length
(LU)
63 mm
Peripheral effective cutting edge count(ZEFP)
5
Connection - machine side(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 25
Maximum ramping angle(RMPX_FFW)
7 °
Connection diameter tolerance(TCDCON)
h6
Grade
(GRADE)
1730
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlCrN
Shank standard group(BSG)
COROMANT
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
25 mm
Functional length(LF)
121 mm
Tolerance class cutting diameter(TCDC)
h10
Body diameter(BD_1)
24 mm
Body diameter(BD_2)
24 mm
Neck diameter(DN)
24 mm
Body length(LB_1)
63 mm
Body length(LB_2)
63.87 mm
Radial rake angle(GAMF)
10.5 °
Body half taper angle(BHTA_1)
0 °
Axial rake angle(GAMP)
10.5 °
Body half taper angle(BHTA_2)
30 °
Flute helix angle(FHA)
38 °
Weight of item(WT)
0.7419 kg
Overall length(OAL)
121 mm
Release date(ValFrom20)
21/02/2015
Release pack id(RELEASEPACK)
15.1
