T300-XM101AE-1/2 C145
T300-XM101AE-1/2 C145

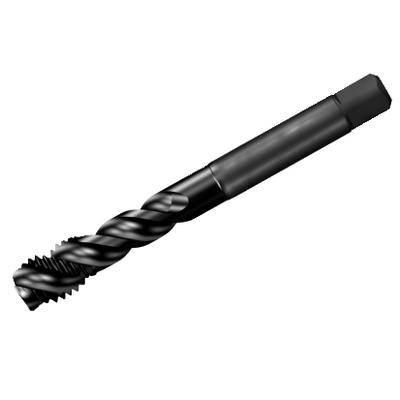

CoroTap® 300, cutting tap with spiral fluteschevron_right
Generic representation
Available
Package quantity: 1
ISO: T300-XM101AE-1/2 C145
Material Id: 6967024
EAN: 7323220748549
ANSI: T300-XM101AE-1/2 C145
Start values
p
vc60 sfm
m
vc20 sfm
k
vc26 sfm
Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Thread size(TDZ)
UNC 1/2-13
Thread form(THFT)
UNC 60°
Tap chamfer length(TCL)
0.1995 inch
Threads per inch(TPI)
13
Thread diameter(TD)
0.5 inch
Premachined hole diameter(PHD)
0.4252 inch
Premachined hole type(PHT)
blind hole
Hole type(HTY)
blind hole
Thread tolerance class(TCTR)
3BX
Shank standard group(BSG)
DIN 2184-1/ANSI
Usable length
(LU)
3.2213 inch
Connection - machine side(ADINTMS)
Tap shank ANSI -inch: 0.367 x 0.275
Chip breaker(CBMD)
XM
Grade
(GRADE)
C145
Substrate(SUBSTRATE)
HSS-PM
Coating(COATING)
PVD FeN
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
0.367 inch
Functional length(LF)
4.3307 inch
Neck diameter(DN)
0.3524 inch
Flute count(NOF)
3
Flute helix angle(FHA)
45 °
Radial rake angle(GAMF)
13 °
Threading length(THL)
0.7087 inch
Threading chamfer type(THCHT)
C = 2-3xTP
Weight of item(WT)
0.119 lb
Overall length(OAL)
4.3307 inch
Release date(ValFrom20)
1/12/16
Release pack id(RELEASEPACK)
16.1
