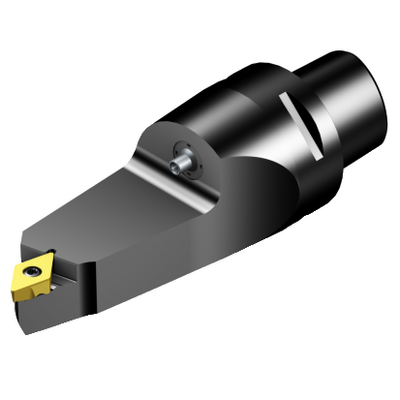

Generic representation
Being replaced by TR-C6-D13MCL-00130
Out of stock
Not compatible with tools related to original product.
Made-to-order
Package quantity: 1
ISO: TR-C5-D13MCL-00115
Material Id: 5755262
EAN: 12158635
ANSI: TR-C5-D13MCL-00115

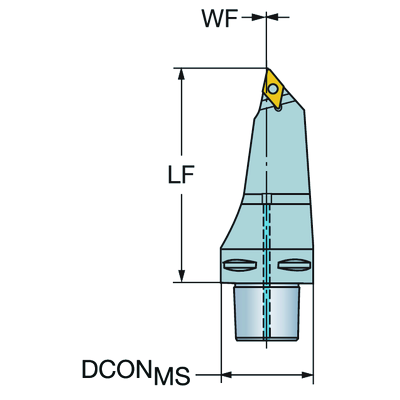

Technical illustrations
Product data
Tool cutting edge angle(KAPR_1)
93 °
Lead angle(PSIR)
-3 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroTurn TR ( TR-DC1308 )
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C5
Maximum ramping angle
(RMPX)
30 °
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
45 °
Maximum overhang
(OHX)
115 mm
Hand
(HAND)
Left
Coolant exit style(CXSC)
decentral exit with nozzles, adjustable
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
50 mm
Functional length(LF)
115 mm
Functional width(WF)
0 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
0 °
Torque(TQ)
3 Nm
Body material(BMC)
Steel
Weight of item(WT)
1 kg
Master insert identification(MIID)
TR-DC1308
Overall length(OAL)
145 mm
Insert seat - metric(SSC_M)
13
Insert seat size code imperial view(SSC_N)
13
Release date(ValFrom20)
1/29/07
Release pack id(RELEASEPACK)
07.1
