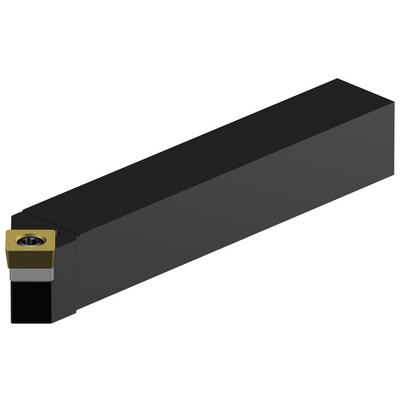

Specific representation
Available
Package quantity: 1
ISO: SSDCR 10 3
Material Id: 5751179
EAN: 80010762
ANSI: SSDCR 10 3
Technical illustrations
Product data
Tool cutting edge angle(KAPR_1)
45 °
Lead angle(PSIR)
45 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
SCMT 09T308
Connection - machine side(ADINTMS)
Rectangular shank -inch: 5/8 x 5/8
Maximum ramping angle
(RMPX)
0 °
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
9.5 mm
Hand
(HAND)
Right
Coolant exit style(CXSC)
no coolant exit
Coolant entry style(CNSC)
without coolant entry
Shank width(B)
15.875 mm
Shank height(H)
15.875 mm
Protruding length(LPR)
101.6 mm
Functional length(LF)
95.52 mm
Functional width(WF)
17.51 mm
Functional height(HF)
15.875 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
0 °
Torque(TQ)
3 Nm
Body material
(BMC)
Steel
Weight of item(WT)
0.182 kg
Master insert identification(MIID)
SCMT 09 T3 08
Overall length(OAL)
101.6 mm
Insert seat(SSC_M)
09
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
07/10/1991
Release pack id(RELEASEPACK)
91.2
