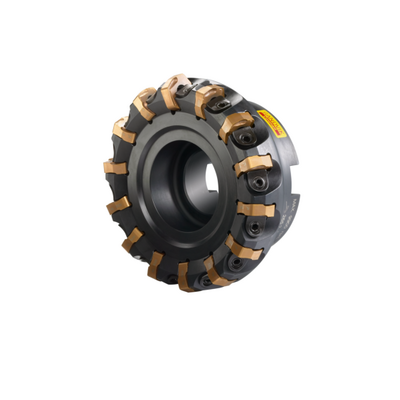

Generic representation
Made-to-order
Package quantity: 1
ISO: L365-125Q40-W15H
Material Id: 5735329
EAN: 12304434
ANSI: L365-125Q40-W15H
Technical illustrations
Generic representation
Product data
Tool cutting edge angle
(KAPR)
65 °
Cutting diameter
(DC)
125 mm
Maximum cutting diameter(DCX)
131.7 mm
Cutting item count(CICT_2)
18
Clamping type code(MTP)
Wedge clamping
Part 2 of cutting item interface identifiers(CUTINT_MASTER_2)
CoroMill 365 -size 15 (L365-1505ZNE)
Depth of cut maximum(APMX_FFW)
6 mm
Maximum ramping angle
(RMPX)
0 °
Maximum plunge depth(AZ)
0 mm
Peripheral effective cutting edge count(ZEFP)
18
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -B (cutter retaining screw) -metric: 40
Hand
(HAND)
Left
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
40 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
B
Functional length(LF)
63 mm
Radial rake angle(GAMF)
-5.6977 °
Axial rake angle(GAMP)
-10.3151 °
Torque(TQ)
6 Nm
Body material(BMC)
Steel
Rotational speed maximum(RPMX)
8,800 1/min
Weight of item(WT)
4 kg
Overall length(OAL)
63 mm
Release date(ValFrom20)
9/10/07
Release pack id(RELEASEPACK)
07.2
