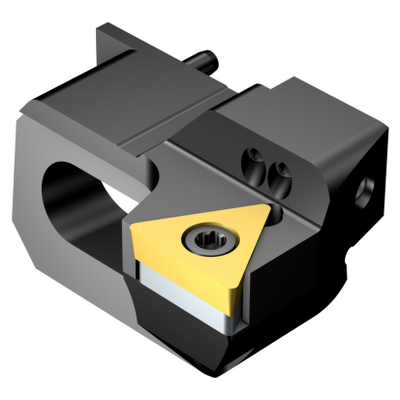

Generic representation
Available
Package quantity: 1
ISO: BR20-GA-TC16F-22
Material Id: 7591830
EAN: 7323223833198
ANSI: BR20-GA-TC16F-22

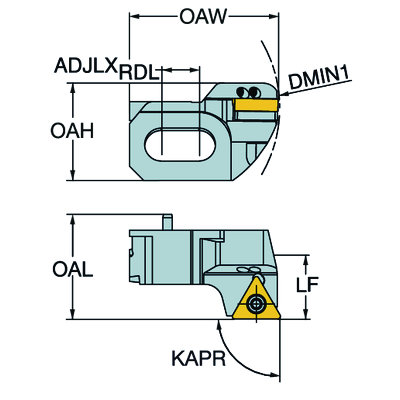

Technical illustrations
Generic representation
Product data
Tool cutting edge angle
(KAPR)
90 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 16T308
Connection - machine side(ADINTMS)
BR20 slide -size G (side A)
Minimum bore diameter
(DMIN)
89 mm
Adjustability(ADJBY)
Yes
Hand
(HAND)
Right
Coolant entry style(CNSC)
radial entry
Coolant pressure(CP)
70 bar
Functional length(LF)
22 mm
Functional width(WF)
32.5 mm
Overall length(OAL)
35.2 mm
Overall height(OAH)
32.8 mm
Overall width(OAW)
61 mm
Torque(TQ)
3 Nm
Weight of item(WT)
0.18 kg
Release date(ValFrom20)
22/09/2018
Release pack id(RELEASEPACK)
18.2
