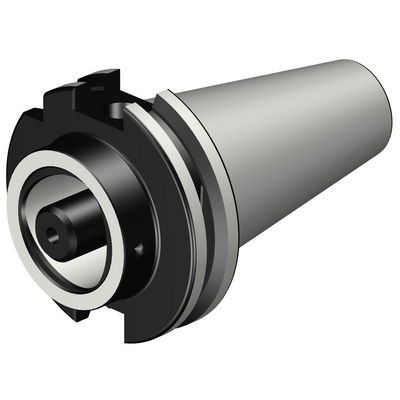

Specific representation
Available
Package quantity: 1
ISO: C4-390B.140-40 030
Material Id: 6408249
EAN: 26408249
ANSI: C4-390B.140-40 030
Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
ISO7388.1/DIN69871 -AD/B central/flange: ISO40
Connection - workpiece side
(ADINTWS)
Coromant Capto (bolt clamping) -size C4
Coolant entry style(CNSC)
decentral over flange and axial
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
80 bar
Functional diameter(DFC)
44.45 mm
Standard number(STDNO)
ISO7388-1
Standard letter(STDLET)
AD/AF
Connection retention knob thread size(CRKS)
Metric M16
Connection diameter workpiece side(DCONWS)
40 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
30 mm
Body diameter(BD_1)
40 mm
Body diameter(BD_2)
63.5 mm
Body length(LB_1)
10.9 mm
Body length(LB_2)
30 mm
Body half taper angle(BHTA_1)
0 °
Body half taper angle(BHTA_2)
0 °
Torque(TQ)
55 Nm
Body material
(BMC)
Steel
Balancing method code(BLMC)
Balancing by design
Weight of item(WT)
0.7983 kg
Overall length(OAL)
98.4 mm
Release date(ValFrom20)
20/09/2014
Release pack id(RELEASEPACK)
14.2
