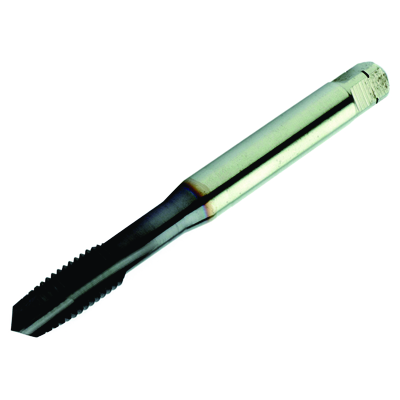

Generic representation
Being replaced by T200-MM101AE-1/2 C110
Available within a week
Fully exchangeable with the original product.
Out of stock
Package quantity: 1
ISO: E8721/2
Material Id: 6182259
EAN: 26182259
ANSI: E8721/2
Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Thread size(TDZ)
UNC 1/2-13
Thread form(THFT)
UNC 60°
Tap chamfer length(TCL)
8.325 mm
Threads per inch(TPI)
13
Thread diameter(TD)
12.7 mm
Premachined hole diameter(PHD)
10.8 mm
Premachined hole type(PHT)
through hole
Hole type(HTY)
through hole
Thread tolerance class(TCTR)
2B
Shank standard group(BSG)
DIN/ANSI
Usable length
(LU)
81.8 mm
Connection - machine side(ADINTMS)
Tap shank ANSI -inch: 0.367 x 0.275
Chip breaker(CBMD)
MM
Grade
(GRADE)
T3J9
Substrate(SUBSTRATE)
HSS-PM
Coating(COATING)
PVD TiAlN+WC/C
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
9.3218 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
110 mm
Neck diameter(DN)
8.9 mm
Flute count(NOF)
4
Flute helix angle(FHA)
0 °
Radial rake angle(GAMF)
7 °
Threading length(THL)
23 mm
Threading chamfer type(THCHT)
B = 3.5-5xTP Gunnose
Weight of item(WT)
0.064 kg
Overall length(OAL)
110 mm
Release date(ValFrom20)
12/12/2011
Release pack id(RELEASEPACK)
11.2
