Generic representation
Available within a week
Package quantity: 1
ISO: EP39PA1/4
Material Id: 6162552
EAN: 26162552
ANSI: EP39PA1/4

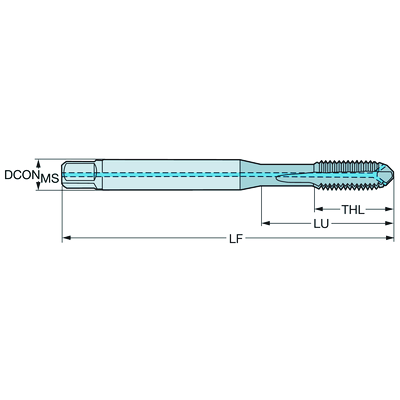

Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Thread size(TDZ)
UNF 1/4-28
Thread form(THFT)
UNF 60°
Tap chamfer length(TCL)
3.949 mm
Threads per inch(TPI)
28
Thread diameter(TD)
6.35 mm
Premachined hole diameter(PHD)
5.5 mm
Premachined hole type(PHT)
through hole
Hole type(HTY)
through hole
Thread tolerance class(TCTR)
2BX
Shank standard group(BSG)
DIN/ANSI
Usable length
(LU)
24.5897 mm
Connection - machine side(ADINTMS)
Tap shank ANSI -inch: 0.255 x 0.191
Chip breaker(CBMD)
PM
Grade
(GRADE)
T4I1
Substrate(SUBSTRATE)
HSS-E-PM
Coating(COATING)
PVD TiAlN
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
radial exit
Coolant pressure(CP)
10 bar
Connection diameter machine side(DCONMS)
6.477 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
80 mm
Neck diameter(DN)
4.55 mm
Flute count(NOF)
3
Flute helix angle(FHA)
0 °
Radial rake angle(GAMF)
7 °
Threading length(THL)
15 mm
Threading chamfer type(THCHT)
B = 3.5-5xTP Gunnose
Weight of item(WT)
0.0217 kg
Overall length(OAL)
82.3 mm
Release date(ValFrom20)
22/02/2020
Release pack id(RELEASEPACK)
12.1
