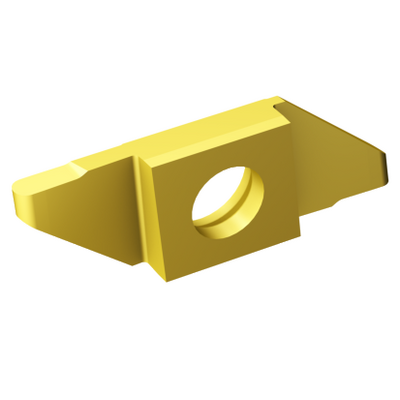

Generic representation
Available
Package quantity: 5
ISO: MAPL 3 160 1025
Material Id: 6493372
EAN: 26493372
ANSI: MAPL 3 160 1025

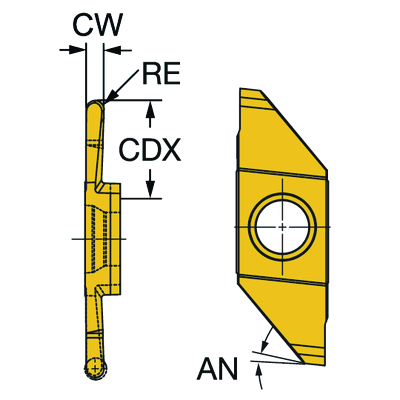

Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
MAP
Operation type
(CTPT)
finishing
Insert mounting style code(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut XS -size 3L
Cutting edge count(CEDC)
2
Insert seat(SSC_M)
3
Cutting width
(CW)
0.063 inch
Cutting width lower tolerance(CWTOLL)
-0.001 inch
Cutting width upper tolerance(CWTOLU)
0.001 inch
Corner radius
(RE)
0.0315 inch
Corner radius lower tolerance(RETOLL)
-0.001 inch
Corner radius upper tolerance(RETOLU)
0.001 inch
Cutting depth maximum
(CDX)
0.2953 inch
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
0.1575 inch
Hand
(HAND)
Left
Grade
(GRADE)
1025
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
0.125 inch
Clearance angle major(AN)
6 °
Weight of item(WT)
0.0084 lb
Insert seat size code imperial view(SSC_N)
3
Release date(ValFrom20)
20/09/2014
Release pack id(RELEASEPACK)
14.2
