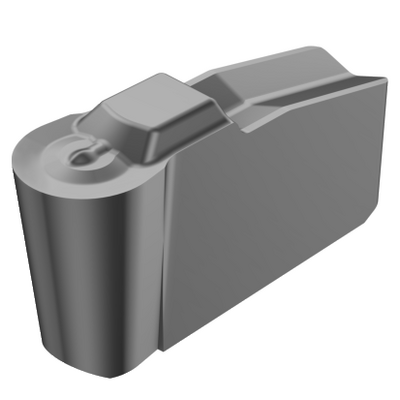

Generic representation
Available
Package quantity: 10
ISO: N151.2-800-60-4P H13A
Material Id: 5737815
EAN: 10234545
ANSI: N151.2-800-60-4P H13A
Start values
| m |  | fn0.2 mm/r (0.15 - 0.25) vc70 m/min (75 - 70) |
 | fn0.72 mm/r (0.51 - 1.03) | |
| k | | fn0.2 mm/r (0.15 - 0.25) vc60 m/min (65 - 60) |
| fn0.72 mm/r (0.51 - 1.03) | |
| n | | fn0.2 mm/r (0.15 - 0.25) vc1500 m/min (1900 - 190) |
| fn0.72 mm/r (0.51 - 1.03) | |
| s | | fn0.2 mm/r (0.15 - 0.25) vc14 m/min (16 - 14) |
| fn0.72 mm/r (0.51 - 1.03) |
| | |
|---|---|---|
| m | fn0.2 mm/r (0.15 - 0.25) vc70 m/min (75 - 70) | fn0.72 mm/r (0.51 - 1.03) |
| k | fn0.2 mm/r (0.15 - 0.25) vc60 m/min (65 - 60) | fn0.72 mm/r (0.51 - 1.03) |
| n | fn0.2 mm/r (0.15 - 0.25) vc1500 m/min (1900 - 190) | fn0.72 mm/r (0.51 - 1.03) |
| s | fn0.2 mm/r (0.15 - 0.25) vc14 m/min (16 - 14) | fn0.72 mm/r (0.51 - 1.03) |

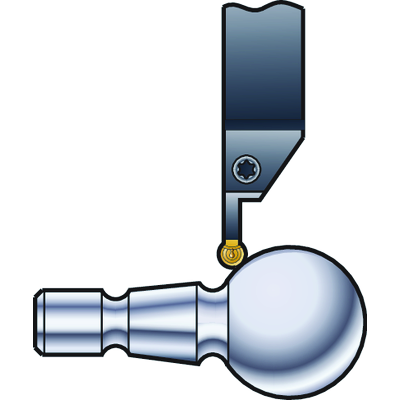

Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
4P
Operation type
(CTPT)
finishing
Insert mounting style code(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
Q-Cut 151.2 -size 60
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
60
Cutting width
(CW)
8 mm
Cutting width lower tolerance(CWTOLL)
-0.02 mm
Cutting width upper tolerance(CWTOLU)
0.02 mm
Corner radius
(RE)
4 mm
Corner radius lower tolerance(RETOLL)
-0.02 mm
Corner radius upper tolerance(RETOLU)
0.02 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
3.6 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
H13A
Insert thickness(S)
10.318 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0086 kg
Insert seat size code imperial view(SSC_N)
60
Release date(ValFrom20)
04/12/1989
Release pack id(RELEASEPACK)
89.1
