Generic representation
Package quantity: 10
ISO: N260.8-1204-L 3020
Material Id: 5738429
EAN: 10896900
ANSI: N260.8-1204-L 3020
Start values (KAPR 75 deg )
K2.2.C.UT, Hardness: 245 HB
k
fz 0.006 in (0.003 - 0.008)
hex 0.006 in (0.003 - 0.008)
vc 690 sfm (800 - 630)
H1.3.Z.HA, Hardness: 60 HRC
h
fz 0.006 in (0.003 - 0.008)
hex 0.006 in (0.003 - 0.008)
vc 175 sfm (210 - 150)

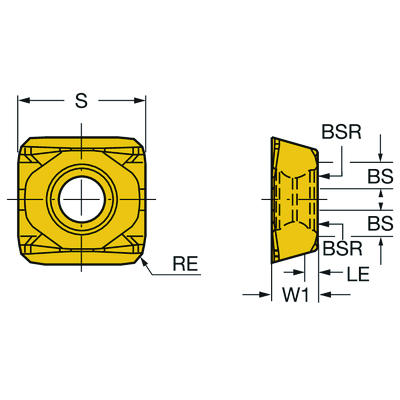

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
L
Operation type
(CTPT)
light
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
0.1732 inch
Insert size and shape
(CUTINT_SIZESHAPE)
Mill AutoAF -N260.8 1204-L
Cutting edge count(CEDC)
8
Insert width(W1)
0.1875 inch
Cutting edge effective length(LE)
0.0394 inch
Depth of cut maximum
(APMX)
0.0394 inch
Wiper edge length(BS)
0.0984 inch
Wiper edge radius(BSR)
5.9055 inch
Corner radius
(RE)
0.0709 inch
Major cutting edge angle(KRINS)
75 °
Hand
(HAND)
Neutral
Grade
(GRADE)
3020
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3
Insert thickness(S)
0.5 inch
Weight of item(WT)
0.0153 lb
Insert seat(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
22/04/1996
Release pack id(RELEASEPACK)
96.2
