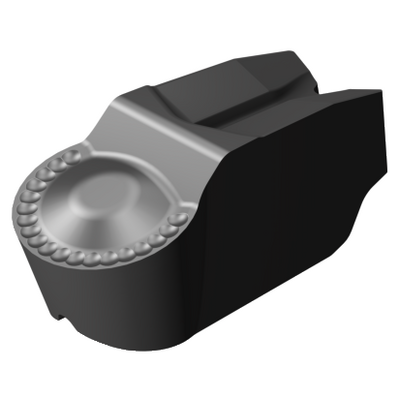

Generic representation
Available
Package quantity: 10
ISO: QFU-G-0300-RM 1105
Material Id: 7193303
EAN: 7323221539405
ANSI: QFU-G-0300-RM 1105

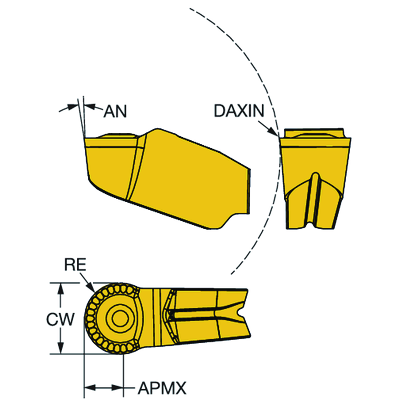

Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
RM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut QFU -size G
Cutting edge count(CEDC)
1
Insert seat(SSC_M)
QFU-G
Cutting width
(CW)
3 mm
Cutting width lower tolerance(CWTOLL)
-0.05 mm
Cutting width upper tolerance(CWTOLU)
0.05 mm
Corner radius
(RE)
1.5 mm
Axial groove inside diameter minimum(DAXIN)
30 mm
Machine side body angle(BAMS)
0 °
Depth of cut maximum
(APMX)
1.3 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
1105
Coating(COATING)
PVD TiAlN
Insert thickness(S)
3.5 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.0007 kg
Insert seat size code imperial view(SSC_N)
QFU-G
Release date(ValFrom20)
22/09/2018
Release pack id(RELEASEPACK)
18.2
