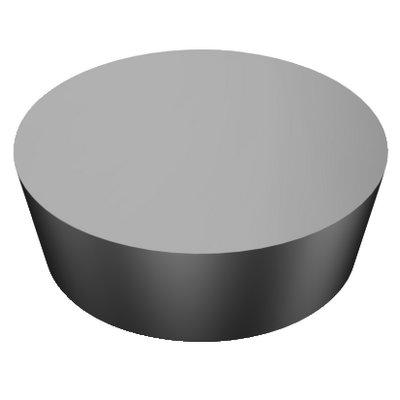

Generic representation
Available
Package quantity: 10
ISO: RPGN090300E 6060
Material Id: 5916220
EAN: 25916220
ANSI: RPG32A 6060
Start values (Depth of cut 1.4 mm)
s
ap1.4 mm (0.6 - 2.4)
fn0.16 mm/r (0.08 - 0.24)
hex0.11 mm/r (0.06 - 0.17)
vc260 m/min (290 - 225)

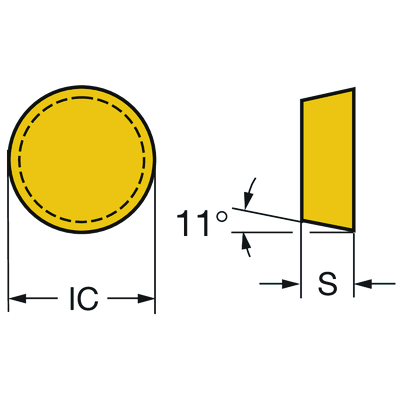

Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
E
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
RP0903
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Round
Corner radius
(RE)
4.7625 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
6060
Substrate(SUBSTRATE)
CS
Insert thickness(S)
3.175 mm
Clearance angle major(AN)
11 °
Weight of item(WT)
0.0007 kg
Insert seat(SSC_M)
09
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
22/09/2010
Release pack id(RELEASEPACK)
10.2
