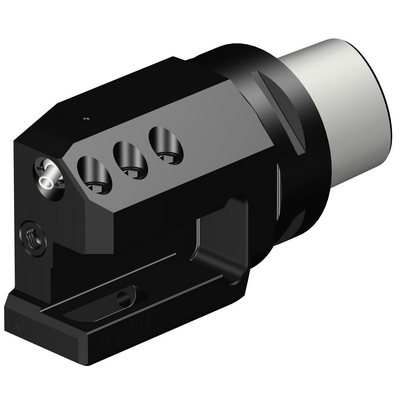

Specific representation
Available
Package quantity: 1
ISO: C6-ASHR-105-20HP
Material Id: 7086837
EAN: 7323221216542
ANSI: C6-ASHR-105-20HP

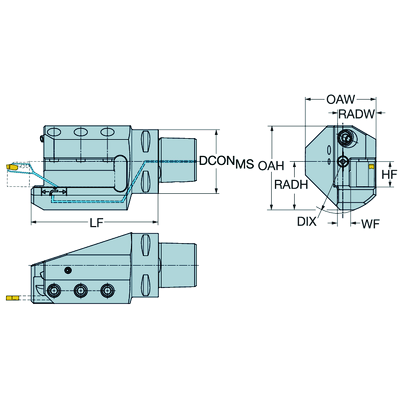

Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C6
Connection - workpiece side
(ADINTWS)
Rectangular shank -metric: 20 x 20
Maximum overhang
(OHX)
105 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
decentral exit with nozzles, adjustable
Coolant pressure(CP)
150 bar
Data chip pocket
(DCP)
Yes
Data chip pocket size(DCPS)
Dia.=10 mm/Height=4,5 mm
Connection diameter machine side(DCONMS)
63 mm
Functional length(LF_1)
105 mm
Functional width(WF_1)
10 mm
Functional height(HF_1)
20 mm
Overall length(OAL)
143 mm
Overall height(OAH)
69 mm
Overall width(OAW)
63.5 mm
Radial body height(RADH)
37 mm
Radial body width(RADW)
30 mm
Maximum tool changer interference diameter(DIX)
85 mm
Body material
(BMC)
Steel
Weight of item(WT)
2.318 kg
Release date(ValFrom20)
19/02/2017
Release pack id(RELEASEPACK)
17.1
