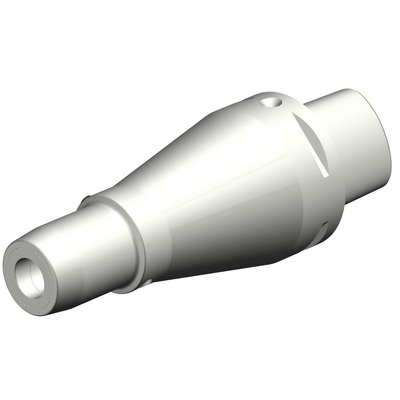

Specific representation
Available
Package quantity: 1
ISO: 930-C8-S-20-175
Material Id: 6255470
EAN: 26255470
ANSI: 930-C8-S-20-175
Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C8
Connection - workpiece side
(ADINTWS)
Hydraulic Membrane chuck -metric: 20
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
80 mm
Functional diameter(DFC)
55 mm
Standard number(STDNO)
ISO26623-1
Connection diameter workpiece side(DCONWS)
20 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
175 mm
Body diameter(BD_1)
38 mm
Body diameter(BD_2)
42 mm
Body diameter(BD_3)
50 mm
Body diameter(BD_4)
80 mm
Body length(LB_1)
16 mm
Body length(LB_2)
49.2 mm
Body length(LB_3)
70 mm
Body length(LB_4)
175 mm
Body half taper angle(BHTA_1)
7 °
Body half taper angle(BHTA_2)
0 °
Body half taper angle(BHTA_3)
0 °
Body half taper angle(BHTA_4)
0 °
Torque(TQ)
8 Nm
Rotational speed maximum(RPMX)
14,000 1/min
Body material
(BMC)
Steel
Balancing method code(BLMC)
Balancing by design
Weight of item(WT)
4.263 kg
Overall length(OAL)
223 mm
Release date(ValFrom20)
20/02/2013
Release pack id(RELEASEPACK)
13.1
