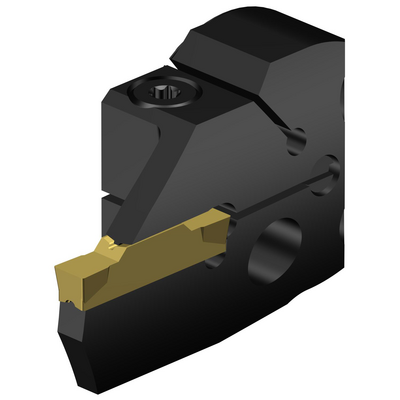

Specific representation
Available
Package quantity: 1
ISO: C2A-SL32-LGJ18A-085GB
Material Id: 8359372
EAN: 7323227240657
ANSI: C2A-SL32-LGJ18A-085GB
Technical illustrations
Generic representation
Product data
Cutting depth maximum
(CDX)
0.7087 inch
Axial groove inside diameter minimum(DAXIN)
3.3465 inch
Maximum axial groove outside diameter(DAXX)
5.1181 inch
Axial groove support direction(AXGSUP)
1
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
CoroCut 2 -size J (C2I-J2-0500-)
Insert seat(SSC_M)
J
Connection - machine side(ADINTMS)
SL head (screw mounted) -size 32
Workpiece side body angle
(BAWS)
90 °
Maximum overhang
(OHX)
0.7087 inch
Hand
(HAND)
Left
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
radial exit
Coolant exit type(CXST)
over the cutting edge
Coolant pressure(CP)
2,175.5661 lbf/in2
Connection diameter machine side(DCONMS)
1.2598 inch
Functional length(LF)
0.7087 inch
Functional width(WF)
1.6181 inch
Functional height(HF)
0.0039 inch
Overall length(OAL)
0.8583 inch
Overall height(OAH)
1.4173 inch
Torque(TQ)
2.5815 ftlbf
Weight of item(WT)
0.2293 lb
Insert seat size code imperial view(SSC_N)
J
Release date(ValFrom20)
30/12/2023
Release pack id(RELEASEPACK)
24.1
