Specific representation
Made-to-order
Package quantity: 1
ISO: C5-DTJNL-35060-22
Material Id: 5727912
EAN: 11413441
ANSI: C5-DTJNL-35060-22

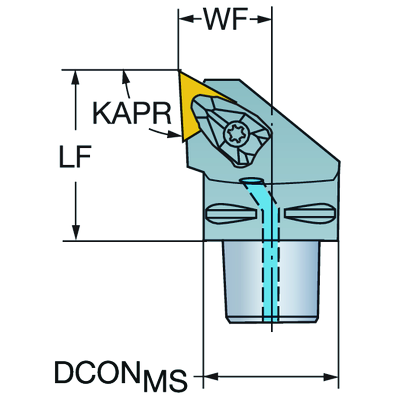

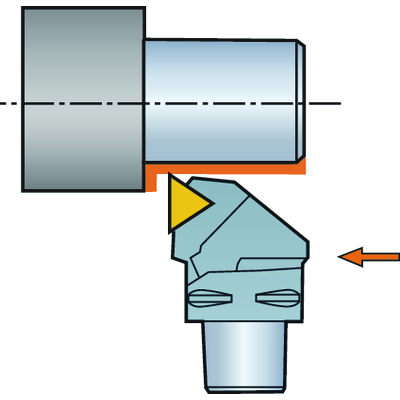

Technical illustrations

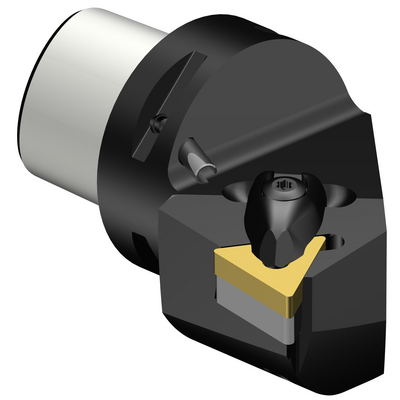

Generic representation
Product data
Tool cutting edge angle(KAPR_1)
93 °
Lead angle(PSIR)
-3 °
Clamping type code(MTP)
clamp on top of insert and into hole
Insert type(CUTINT_MASTER)
TNMG 220408
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C5
Maximum ramping angle
(RMPX)
0 °
Minimum bore diameter
(DMIN_1)
110 mm
Minimum bore diameter(DMIN_2)
165 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
60 mm
Hand
(HAND)
Left
Coolant exit style(CXSC)
axial inclined exit
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
50 mm
Functional length(LF)
60 mm
Functional width(WF)
35 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
-6 °
Inclination angle(LAMS)
-6 °
Torque(TQ)
3.9 Nm
Body material
(BMC)
Steel
Weight of item(WT)
0.734 kg
Master insert identification(MIID)
TNMG 22 04 08
Overall length(OAL)
90 mm
Insert seat(SSC_M)
22
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
07/10/2002
Release pack id(RELEASEPACK)
02.2
