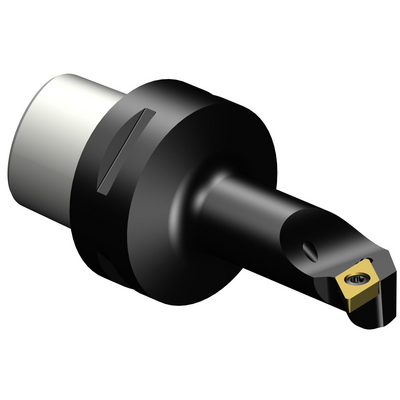

Specific representation
Available
Package quantity: 1
ISO: C5-SDUCL-13080-11
Material Id: 5728607
EAN: 10062231
ANSI: C5-SDUCL-13080-11

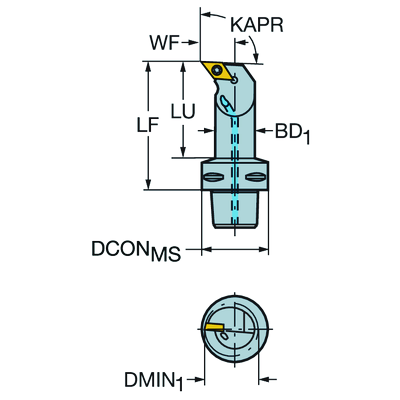

Technical illustrations
Generic representation
Product data
Tool cutting edge angle(KAPR_1)
93 °
Lead angle(PSIR)
-3 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
DCMT 11T308
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C5

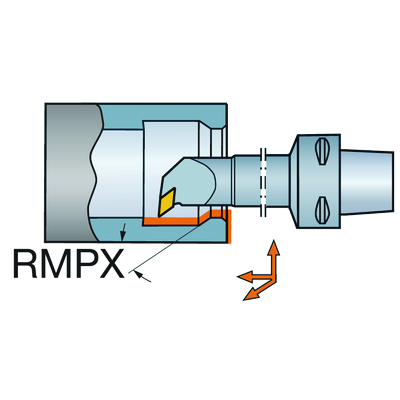

Maximum ramping angle
(RMPX)
27 °
Minimum bore diameter
(DMIN_1)
25 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
80 mm
Usable length
(LU)
56 mm
Hand
(HAND)
Left
Coolant exit style(CXSC)
axial inclined exit
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
50 mm
Functional length(LF)
80 mm
Functional width(WF)
13 mm
Functional height(HF)
0 mm
Body diameter(BD)
20 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
-5.75 °
Torque(TQ)
3 Nm
Body material
(BMC)
Steel
Weight of item(WT)
0.546 kg
Master insert identification(MIID)
DCMT 11 T3 08
Overall length(OAL)
110 mm
Insert seat(SSC_M)
11
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
28/01/1991
Release pack id(RELEASEPACK)
91.1
