E0361-14file_copy

E0361-14

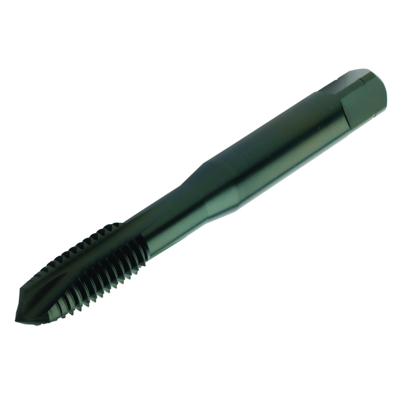

Generic representation
Being replaced by T200-XM101AJ-1 C145
Available within a week
Fully exchangeable with the original product.
Out of stock
Package quantity: 1
ISO: E0361-14file_copy
Material Id: 6181782file_copy
EAN: 26181782file_copy
ANSI: E0361-14file_copy
Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)info
PMKSearch Icon
Thread size(TDZ)info
UNS 1"-14Search Icon
Thread form(THFT)info
UN 60°Search Icon
Tap chamfer length(TCL)info
7.8625 mmSearch Icon
Threads per inch(TPI)info
14Search Icon
Thread diameter(TD)info
25.4 mmSearch Icon
Premachined hole diameter(PHD)info
23.5 mmSearch Icon
Premachined hole type(PHT)info
through holeSearch Icon
Hole type(HTY)info
through holeSearch Icon
Tolerance class tool(TCT)info
H4 = Basic Plus 0.0015" to Plus 0.0020"Search Icon
Thread tolerance class(TCTR)info
3BSearch Icon
Shank standard group(BSG)info
ANSISearch Icon
Usable length (LU)info
65.575 mmSearch Icon
Connection - machine side(ADINTMS)info
Tap shank ANSI -inch: 0.800 x 0.600Search Icon
Chip breaker(CBMD)info
XMSearch Icon
Grade (GRADE)info
T3P4Search Icon
Substrate(SUBSTRATE)info
HSS-PMSearch Icon
Coating(COATING)info
PVD FeNSearch Icon
Coolant entry style(CNSC)info
without coolant entrySearch Icon
Coolant exit style(CXSC)info
no coolant exitSearch Icon
Connection diameter machine side(DCONMS)info
20.32 mmSearch Icon
Connection diameter tolerance(TCDCON)info
h9Search Icon
Functional length(LF)info
130.175 mmSearch Icon
Neck diameter(DN)info
19.9 mmSearch Icon
Flute count(NOF)info
3Search Icon
Flute helix angle(FHA)info
0 °Search Icon
Radial rake angle(GAMF)info
7 °Search Icon
Threading length(THL)info
35.5 mmSearch Icon
Threading chamfer type(THCHT)info
B = 3.5-5xTP GunnoseSearch Icon
Weight of item(WT)info
0.33 kgSearch Icon
Overall length(OAL)info
130.175 mmSearch Icon
Release date(ValFrom20)info
12/12/2011Search Icon
Release pack id(RELEASEPACK)info
11.2Search Icon
