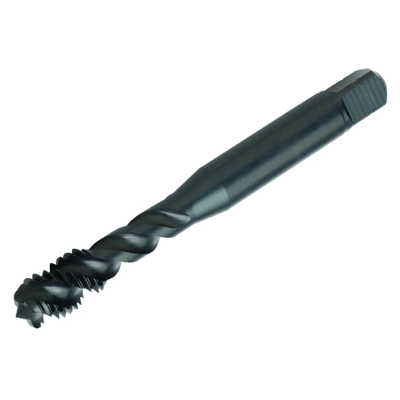

Generic representation
Being replaced by T300-MM100AE-8-32 C145
Available within a week
Fully exchangeable with the original product.
Out of stock
Package quantity: 1
ISO: E0698-32
Material Id: 6182973
EAN: 26182973
ANSI: E0698-32
Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Thread size(TDZ)
UNC #8-32
Thread form(THFT)
UNC 60°
Tap chamfer length(TCL)
1.4559 mm
Threads per inch(TPI)
32
Thread diameter(TD)
4.1656 mm
Premachined hole diameter(PHD)
3.5 mm
Premachined hole type(PHT)
blind hole
Hole type(HTY)
blind hole
Tolerance class tool(TCT)
H2 = Basic Plus 0.0005" to Plus 0.0010"
Thread tolerance class(TCTR)
3B
Shank standard group(BSG)
ANSI
Usable length
(LU)
16.576 mm
Connection - machine side(ADINTMS)
Tap shank ANSI -inch: 0.168 x 0.131
Chip breaker(CBMD)
MM
Grade
(GRADE)
T3P4
Substrate(SUBSTRATE)
HSS-PM
Coating(COATING)
PVD FeN
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
4.2672 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
53.975 mm
Neck diameter(DN)
2.97 mm
Flute count(NOF)
3
Flute helix angle(FHA)
48 °
Radial rake angle(GAMF)
13 °
Threading length(THL)
7.9 mm
Threading chamfer type(THCHT)
C = 2-3xTP
Weight of item(WT)
0.0074 kg
Overall length(OAL)
53.975 mm
Release date(ValFrom20)
12/12/2011
Release pack id(RELEASEPACK)
11.2
