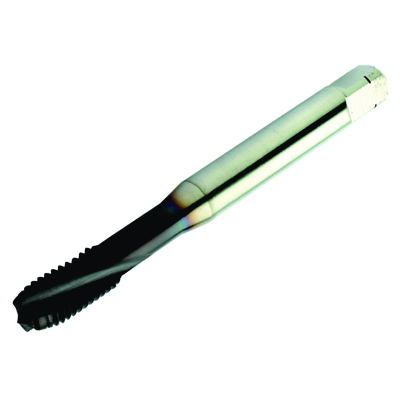

Generic representation
Being replaced by T300-PD101AF-3/4 D110
Available within a week
Fully exchangeable with the original product.
Made-to-order
Package quantity: 1
ISO: E8853/4
Material Id: 6182278
EAN: 26182278
ANSI: E8853/4
Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Thread size(TDZ)
UNF 3/4-16
Thread form(THFT)
UNF 60°
Tap chamfer length(TCL)
4.282 mm
Threads per inch(TPI)
16
Thread diameter(TD)
19.05 mm
Premachined hole diameter(PHD)
17.5 mm
Premachined hole type(PHT)
blind hole
Hole type(HTY)
blind hole
Thread tolerance class(TCTR)
2B
Shank standard group(BSG)
DIN/ANSI
Usable length
(LU)
77.5 mm
Connection - machine side(ADINTMS)
Tap shank ANSI -inch: 0.590 x 0.442
Chip breaker(CBMD)
PM
Grade
(GRADE)
T4J8
Substrate(SUBSTRATE)
HSS-E-PM
Coating(COATING)
PVD TiAlN
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
14.986 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
125 mm
Neck diameter(DN)
14.6 mm
Flute count(NOF)
4
Flute helix angle(FHA)
15 °
Radial rake angle(GAMF)
5 °
Threading length(THL)
30 mm
Threading chamfer type(THCHT)
C = 2-3xTP
Weight of item(WT)
0.166 kg
Overall length(OAL)
125 mm
Release date(ValFrom20)
12/12/2011
Release pack id(RELEASEPACK)
11.2
