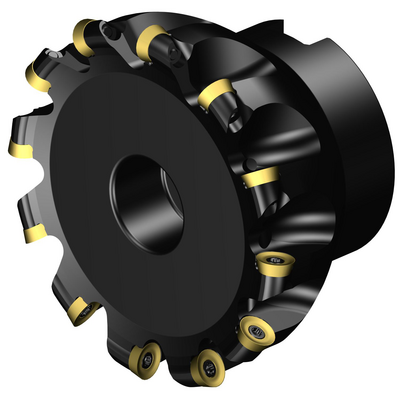

Specific representation
Available
Package quantity: 1
ISO: R300-080Q27-08H
Material Id: 5744437
EAN: 11881402
ANSI: R300-080Q27-08H
Technical illustrations
Generic representation
Product data
Cutting diameter
(DC)
72 mm
Maximum cutting diameter(DCX)
80 mm
Cutting item count(CICT_2)
12
Clamping type code(MTP)
clamp with screw through hole
Part 2 of cutting item interface identifiers(CUTINT_MASTER_2)
CoroMill 300 -size 0828 (R300-0828)
Depth of cut maximum(APMX_EFW)
6 mm
Depth of cut maximum(APMX_FFW)
4 mm
Maximum ramping angle
(RMPX)
1 °
Maximum plunge depth(AZ)
1.9 mm
Peripheral effective cutting edge count(ZEFP)
12
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric: 27
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
10 bar
Connection diameter machine side(DCONMS)
27 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
A
Functional length(LF)
50 mm
Radial rake angle(GAMF)
7 °
Axial rake angle(GAMP)
0 °
Torque(TQ)
1.2 Nm
Body material
(BMC)
Steel
Rotational speed maximum(RPMX)
20,500 1/min
Weight of item(WT)
0.881 kg
Overall length(OAL)
50 mm
Release date(ValFrom20)
09/08/2004
Release pack id(RELEASEPACK)
04.2
