T300-NM100DB-M16X150B150
T300-NM100DB-M16X150B150
CoroTap® 300, cutting tap with spiral fluteschevron_right

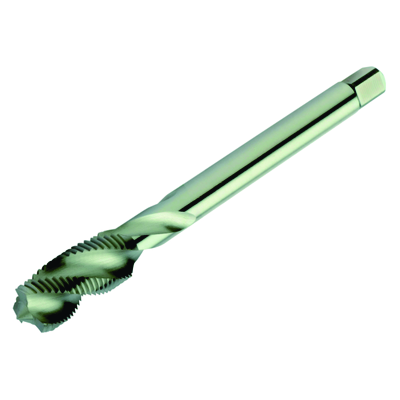

Generic representation
Being replaced by T300-XM100DB-M16X150C150
Available
Different grade vs. the original product – Please check cutting speed.
Available
Package quantity: 1
ISO: T300-NM100DB-M16X150B150
Material Id: 7666383
EAN: 7323224171015
ANSI: T300-NM100DB-M16X150B150
Start values
n
vc20 m/min
Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Thread size(TDZ)
MF 16x1.5
Thread form(THFT)
MF 60°
Tap chamfer length(TCL)
2.9749 mm
Thread pitch(TP)
1.5 mm
Thread diameter(TD)
16 mm
Premachined hole diameter(PHD)
14.5 mm
Premachined hole type(PHT)
blind hole
Hole type(HTY)
blind hole
Thread tolerance class(TCTR)
6H
Shank standard group(BSG)
DIN 374
Usable length
(LU)
58 mm
Connection - machine side(ADINTMS)
Tap shank DIN -metric: 12.00 x 9.00
Chip breaker(CBMD)
NM
Grade
(GRADE)
B150
Substrate(SUBSTRATE)
HSS-E
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
12 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
100 mm
Neck diameter(DN)
11.7 mm
Flute count(NOF)
3
Flute helix angle(FHA)
35 °
Radial rake angle(GAMF)
18 °
Threading length(THL)
21 mm
Threading chamfer type(THCHT)
C = 2-3xTP
Weight of item(WT)
0.0799 kg
Overall length(OAL)
100 mm
Release date(ValFrom20)
24/07/2018
Release pack id(RELEASEPACK)
18.2
