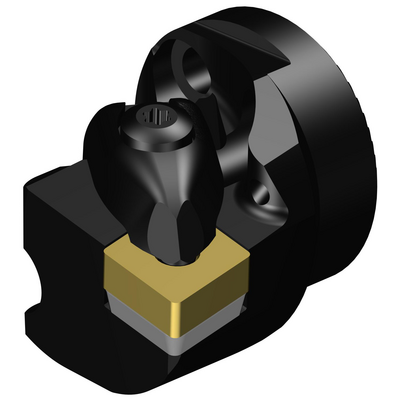

Specific representation
Available
Package quantity: 1
ISO: 570-DCLNR-32-12-L
Material Id: 5764270
EAN: 11797203
ANSI: 570-DCLNR-32-12-L

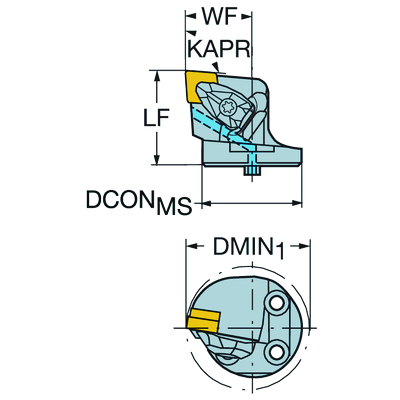

Technical illustrations
Generic representation
Product data
Tool cutting edge angle(KAPR_1)
95 °
Lead angle(PSIR)
-5 °
Clamping type code(MTP)
clamp on top of insert and into hole
Insert type(CUTINT_MASTER)
CNMG 120408
Connection - machine side(ADINTMS)
SL head (screw mounted) -size 32
Maximum ramping angle
(RMPX)
0 °
Minimum bore diameter
(DMIN_1)
40 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
38 mm
Hand
(HAND)
Right
Coolant exit style(CXSC)
axial inclined exit
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
32 mm
Functional length(LF)
38 mm
Functional width(WF)
22 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
-6 °
Inclination angle(LAMS)
-9 °
Torque(TQ)
3.9 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.178 kg
Master insert identification(MIID)
CNMG 12 04 08
Overall length(OAL)
41.8 mm
Insert seat - metric(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
1/26/04
Release pack id(RELEASEPACK)
04.1
