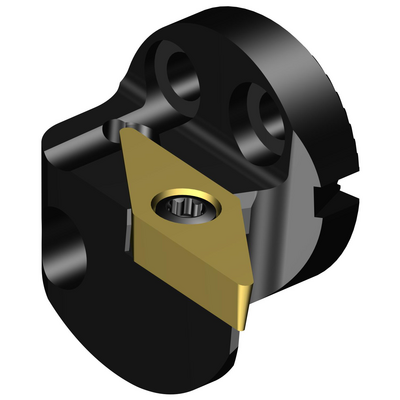

Specific representation
Available
Package quantity: 1
ISO: 570-SVLBR-25-16-LF
Material Id: 5764415
EAN: 11799115
ANSI: 570-SVLBR-25-16-LF
Technical illustrations
Generic representation
Product data
Tool cutting edge angle(KAPR_1)
95 °
Lead angle(PSIR)
-5 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
VBMT 160408/ VCMT 160408
Connection - machine side(ADINTMS)
SL head (screw mounted) -size 25, -slot coolant
Maximum ramping angle
(RMPX)
45 °
Minimum bore diameter
(DMIN_1)
35 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
22 mm
Hand
(HAND)
Right
Coolant exit style(CXSC)
axial inclined exit
Coolant entry style(CNSC)
decentral over slots on the shank
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
25 mm
Functional length(LF)
22 mm
Functional width(WF)
20 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
-6.5 °
Torque(TQ)
3 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.062 kg
Master insert identification(MIID)
VBMT 16 04 08
Overall length(OAL)
25.9 mm
Insert seat - metric(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
1/26/04
Release pack id(RELEASEPACK)
04.1
