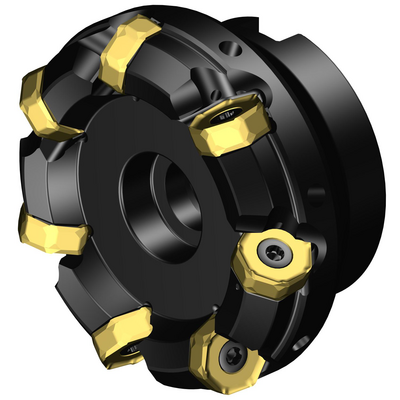

Specific representation
Available
Package quantity: 1
ISO: A745-102R38-21M
Material Id: 6702265
EAN: 26702265
ANSI: A745-102R38-21M

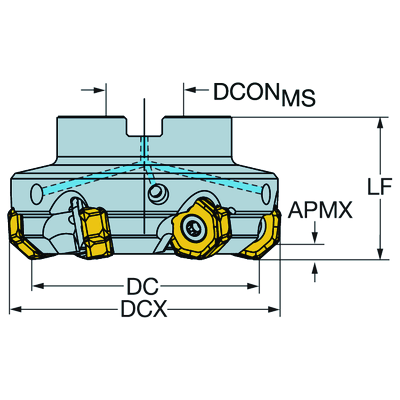

Technical illustrations
Generic representation
Product data
Tool cutting edge angle
(KAPR)
42 °
Cutting diameter
(DC)
101.6 mm
Maximum cutting diameter(DCX)
116.8 mm
Cutting item count(CICT_2)
7
Clamping type code(MTP)
clamp with screw through hole
Part 2 of cutting item interface identifiers(CUTINT_MASTER_2)
CoroMill 745 -size 2109 (745R-2109)
Depth of cut maximum(APMX_FFW)
5.2 mm
Maximum ramping angle
(RMPX)
0 °
Maximum plunge depth(AZ)
0 mm
Peripheral effective cutting edge count(ZEFP)
7
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -A (hexagon socket head cap screw) -inch: 1 1/2
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
10 bar
Connection diameter machine side(DCONMS)
38.1 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
A
Functional length(LF)
63 mm
Radial rake angle(GAMF)
-29.7308 °
Axial rake angle(GAMP)
-7.5813 °
Torque(TQ)
12 Nm
Body material(BMC)
Steel
Rotational speed maximum(RPMX)
4,725 1/min
Weight of item(WT)
2.771 kg
Overall length(OAL)
63 mm
Release date(ValFrom20)
4/24/16
Release pack id(RELEASEPACK)
16.1
