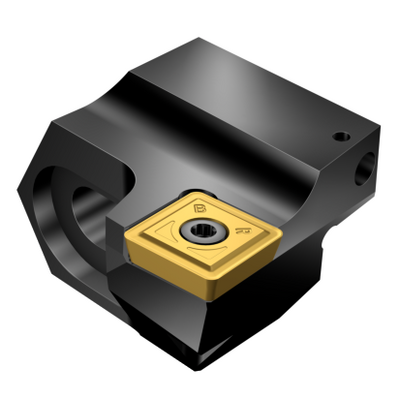

Generic representation
Available within a week
Package quantity: 1
ISO: R820D-BR18SSYP12
Material Id: 7254707
EAN: 7323221823382
ANSI: R820D-BR18SSYP12

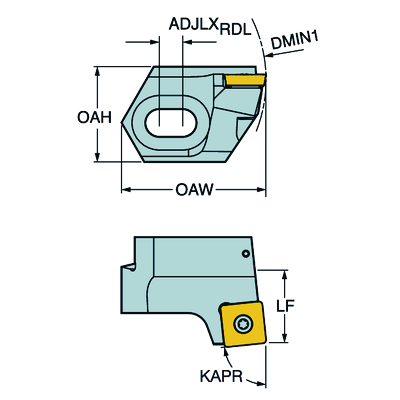

Technical illustrations
Generic representation
Product data
Tool cutting edge angle
(KAPR)
84 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroBore SP12 (SPMT 1210-BM)
Connection - machine side(ADINTMS)
CoroBore 820 -size D
Minimum bore diameter
(DMIN)
77.5 mm
Adjustability(ADJBY)
Yes
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Functional length(LF)
18 mm
Functional width(WF)
24.8 mm
Overall length(OAL)
27.2 mm
Overall height(OAH)
24.1 mm
Overall width(OAW)
39.7 mm
Torque(TQ)
2 Nm
Weight of item(WT)
0.091 kg
Release date(ValFrom20)
2/19/17
Release pack id(RELEASEPACK)
17.1
