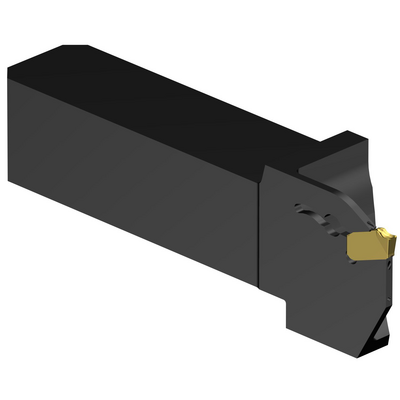

QS-QD-LFE0800C12D
QS-QD-LFE0800C12D
CoroCut® QD, QS™ shank tool for parting and groovingchevron_right
Specific representation
Available
Package quantity: 1
ISO: QS-QD-LFE0800C12D
Material Id: 6427647
EAN: 26427647
ANSI: QS-QD-LFE0800C12D
Technical illustrations
Generic representation
Product data
Cutting depth maximum
(CDX)
20.32 mm
Work piece parting diameter maximum(CUTDIA)
40.64 mm
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
CoroCut QD -size E (QD-NE-0200-0002-CM)
Insert seat - metric(SSC_M)
E
Connection - machine side(ADINTMS)
Rectangular shank -inch: 3/4 x 3/4
Workpiece side body angle
(BAWS)
0 °
Minimum overhang(OHN)
21.92 mm
Maximum overhang
(OHX)
41 mm
Hand
(HAND)
Left
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Coolant entry thread size(CNT)
G 1/8-28
Coolant pressure(CP)
150 bar
Shank width(B)
19.05 mm
Shank height(H)
19.05 mm
Functional length(LF)
90.9 mm
Functional width(WF)
19.55 mm
Functional height(HF)
19.05 mm
Overall length(OAL)
90.9 mm
Weight of item(WT)
0.2 kg
Insert seat size code imperial view(SSC_N)
E
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
