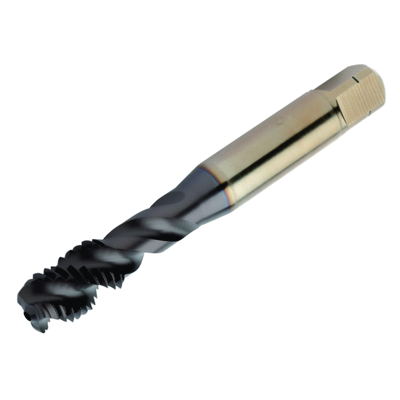

Generic representation
Being replaced by EX09PM16
Out of stock
Out of stock
Package quantity: 1
ISO: E051M16
Material Id: 6182598
EAN: 26182598
ANSI: E051M16
Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Thread size(TDZ)
M 16
Thread form(THFT)
M (Metric 60°)
Tap chamfer length(TCL)
4.0085 mm
Thread pitch(TP)
2 mm
Thread diameter(TD)
16 mm
Premachined hole diameter(PHD)
14 mm
Premachined hole type(PHT)
blind hole
Hole type(HTY)
blind hole
Thread tolerance class(TCTR)
6H
Shank standard group(BSG)
ISO 529
Usable length
(LU)
59 mm
Connection - machine side(ADINTMS)
Tap shank ISO -metric: 12.50 x 10.00
Chip breaker(CBMD)
PM
Grade
(GRADE)
T3J8
Substrate(SUBSTRATE)
HSS-PM
Coating(COATING)
PVD TiAlN
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
10 bar
Connection diameter machine side(DCONMS)
12.5 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
102 mm
Neck diameter(DN)
12.1 mm
Flute count(NOF)
4
Flute helix angle(FHA)
45 °
Radial rake angle(GAMF)
13 °
Threading length(THL)
18 mm
Threading chamfer type(THCHT)
C = 2-3xTP
Weight of item(WT)
0.089 kg
Overall length(OAL)
102 mm
Release date(ValFrom20)
12/12/2011
Release pack id(RELEASEPACK)
11.2
