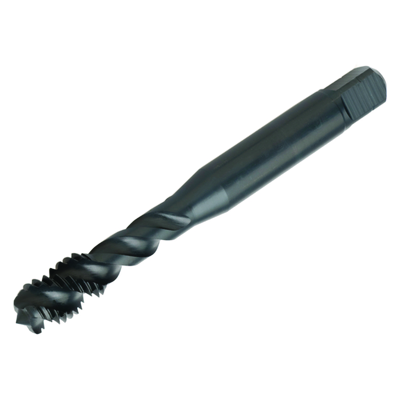

Generic representation
Being replaced by T300-MM101AJ-1 C145
Available within a week
Fully exchangeable with the original product.
Out of stock
Package quantity: 1
ISO: E0791-14
Material Id: 6182923
EAN: 26182923
ANSI: E0791-14
Technical illustrations
Generic representation
Product data
Workpiece material(s)(TMC1ISO)
Thread size(TDZ)
UNS 1"-14
Thread form(THFT)
UN 60°
Tap chamfer length(TCL)
3.2459 mm
Threads per inch(TPI)
14
Thread diameter(TD)
25.4 mm
Premachined hole diameter(PHD)
23.5 mm
Premachined hole type(PHT)
blind hole
Hole type(HTY)
blind hole
Tolerance class tool(TCT)
H4 = Basic Plus 0.0015" to Plus 0.0020"
Thread tolerance class(TCTR)
3B
Shank standard group(BSG)
ANSI
Usable length
(LU)
65.6 mm
Connection - machine side(ADINTMS)
Tap shank ANSI -inch: 0.800 x 0.600
Chip breaker(CBMD)
MM
Grade
(GRADE)
T3P4
Substrate(SUBSTRATE)
HSS-PM
Coating(COATING)
PVD FeN
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter machine side(DCONMS)
20.32 mm
Connection diameter tolerance(TCDCON)
h9
Functional length(LF)
130.2 mm
Neck diameter(DN)
19.9 mm
Flute count(NOF)
4
Flute helix angle(FHA)
48 °
Radial rake angle(GAMF)
13 °
Threading length(THL)
30 mm
Threading chamfer type(THCHT)
C = 2-3xTP
Weight of item(WT)
0.298 kg
Overall length(OAL)
130.2 mm
Release date(ValFrom20)
12/12/2011
Release pack id(RELEASEPACK)
11.2
