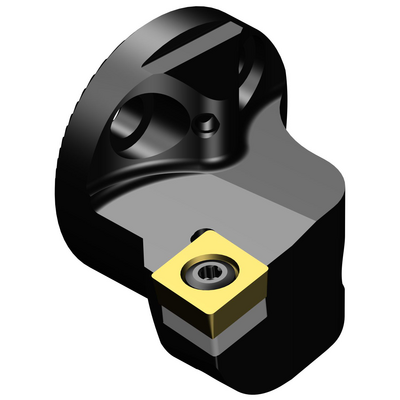

Specific representation
Available
Package quantity: 1
ISO: 570-SCLCL-40-12
Material Id: 5962601
EAN: 25962601
ANSI: 570-SCLCL-40-12
Technical illustrations
Generic representation
Product data
Tool cutting edge angle(KAPR_1)
95 °
Lead angle(PSIR)
-5 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CCMT 120408
Connection - machine side(ADINTMS)
SL head (screw mounted) -size 40
Maximum ramping angle
(RMPX)
0 °
Minimum bore diameter
(DMIN_1)
50 mm
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
38 mm
Hand
(HAND)
Left
Coolant exit style(CXSC)
axial inclined exit
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
40 bar
Connection diameter machine side(DCONMS)
40 mm
Functional length(LF)
38 mm
Functional width(WF)
27 mm
Functional height(HF)
0 mm
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
-7 °
Torque(TQ)
3 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.227 kg
Master insert identification(MIID)
CCMT 12 04 08
Overall length(OAL)
41.8 mm
Insert seat - metric(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
2/16/11
Release pack id(RELEASEPACK)
11.1
