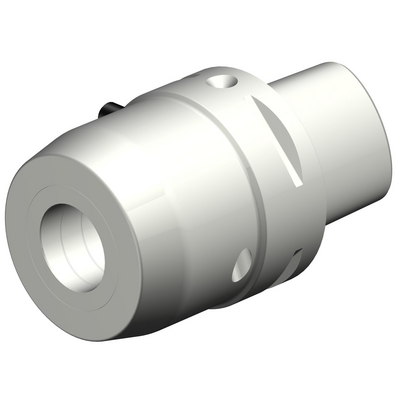

Specific representation
Available
Package quantity: 1
ISO: 930-C8-HD-A31-085
Material Id: 7105366
EAN: 7323221300685
ANSI: 930-C8-HD-A31-085
Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C8
Connection - workpiece side
(ADINTWS)
Hydraulic Membrane chuck -inch: 1 1/4 (excluding WE/WN shanks)
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
80 mm
Functional diameter(DFC)
55 mm
Standard number(STDNO)
ISO26623-1
Connection diameter workpiece side(DCONWS)
31.75 mm
Kappa (z-axis rot)(KAP)
0 °
Functional length(LF)
85 mm
Body diameter(BD_1)
67.8 mm
Body diameter(BD_2)
76 mm
Body diameter(BD_3)
80 mm
Body length(LB_1)
18.8 mm
Body length(LB_2)
53.3 mm
Body length(LB_3)
85 mm
Body half taper angle(BHTA_1)
12 °
Body half taper angle(BHTA_2)
0 °
Body half taper angle(BHTA_3)
0 °
Torque(TQ)
10 Nm
Rotational speed maximum(RPMX)
14,000 1/min
Body material(BMC)
Steel
Balancing method code(BLMC)
Balancing by design
Weight of item(WT)
3.344 kg
Overall length(OAL)
133 mm
Release date(ValFrom20)
9/22/16
Release pack id(RELEASEPACK)
16.2
