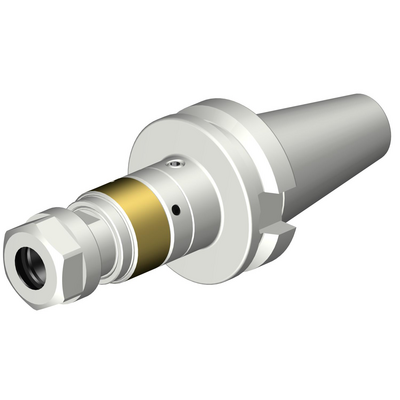

Specific representation
Available within a week
Package quantity: 1
ISO: 970-B40-20-110
Material Id: 6413055
EAN: 26413055
ANSI: 970-B40-20-110
Technical illustrations
Generic representation
Product data
Tap range max(TRMAX)
M12
Connection - machine side(ADINTMS)
MAS-BT403 -AD central coolant - BT40
Connection - workpiece side
(ADINTWS)
ER collet (DIN6499-B) for tapping -ER20
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
axial concentric exit
Coolant pressure(CP)
80 bar
Functional diameter(DFC)
44.45 mm
Connection retention knob thread size(CRKS)
Metric M16
Connection diameter workpiece side(DCONWS)
20.8 mm
Functional length(LF)
97.2 mm
Body length(LB_1)
35.3 mm
Body length(LB_2)
78.1 mm
Body length(LB_3)
105.2 mm
Rotational speed maximum(RPMX)
8,000 1/min
Weight of item(WT)
1.314 kg
Overall length(OAL)
170.6 mm
Release date(ValFrom20)
9/12/13
Release pack id(RELEASEPACK)
13.2
